Internet radio with DAB+ and FM tuner, Bluetooth and UPnP/DLNA support
Highly efficient class D amplifier with 2 x 460 watts power
Wide range of streaming options via WLAN, LAN jack and Bluetooth

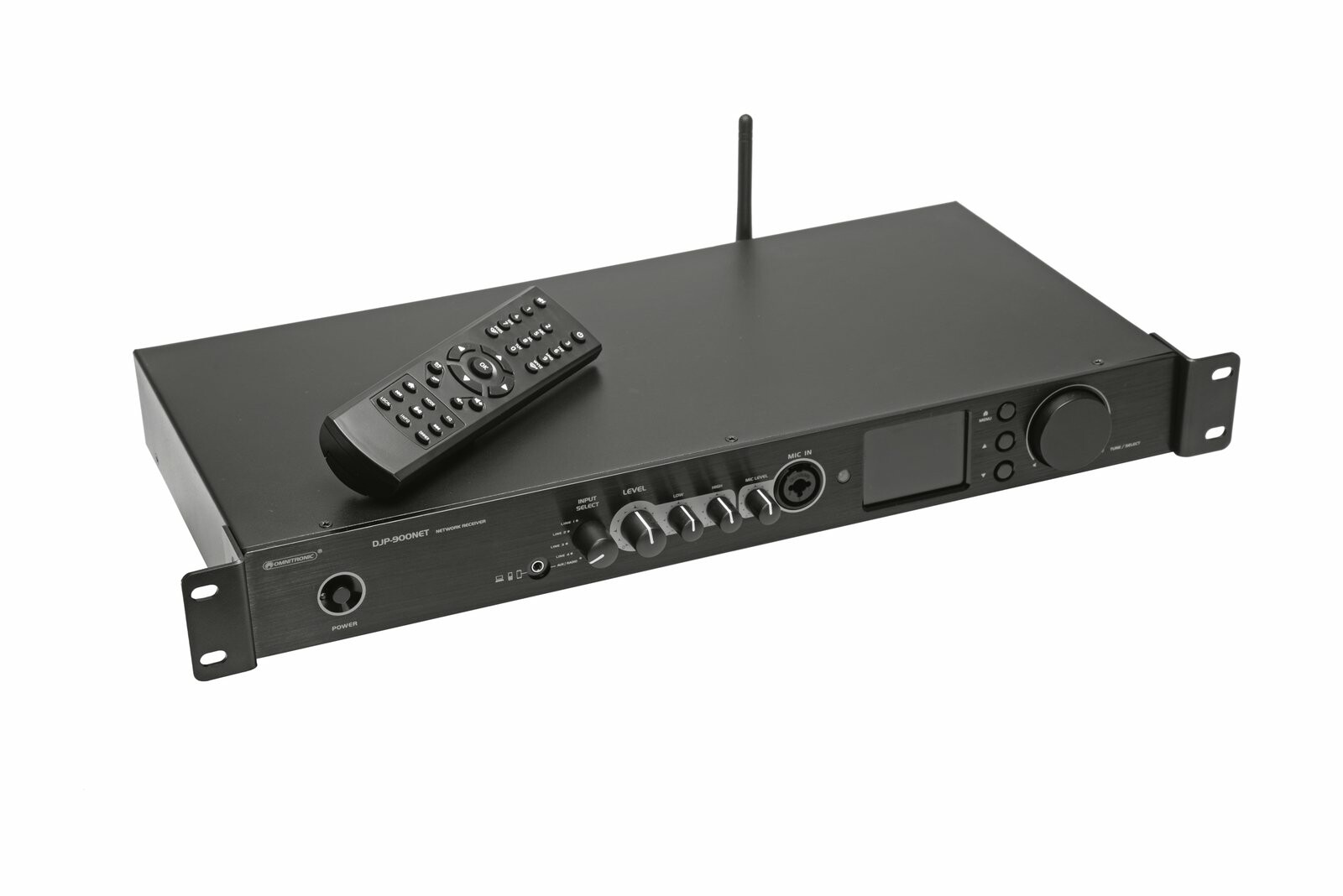

Large 2.4" TFT color display, easy jog dial operation, equalizer presets, sleep timer and alarm function
Access to thousands of radio stations worldwide
Station scan by genre, station name, location

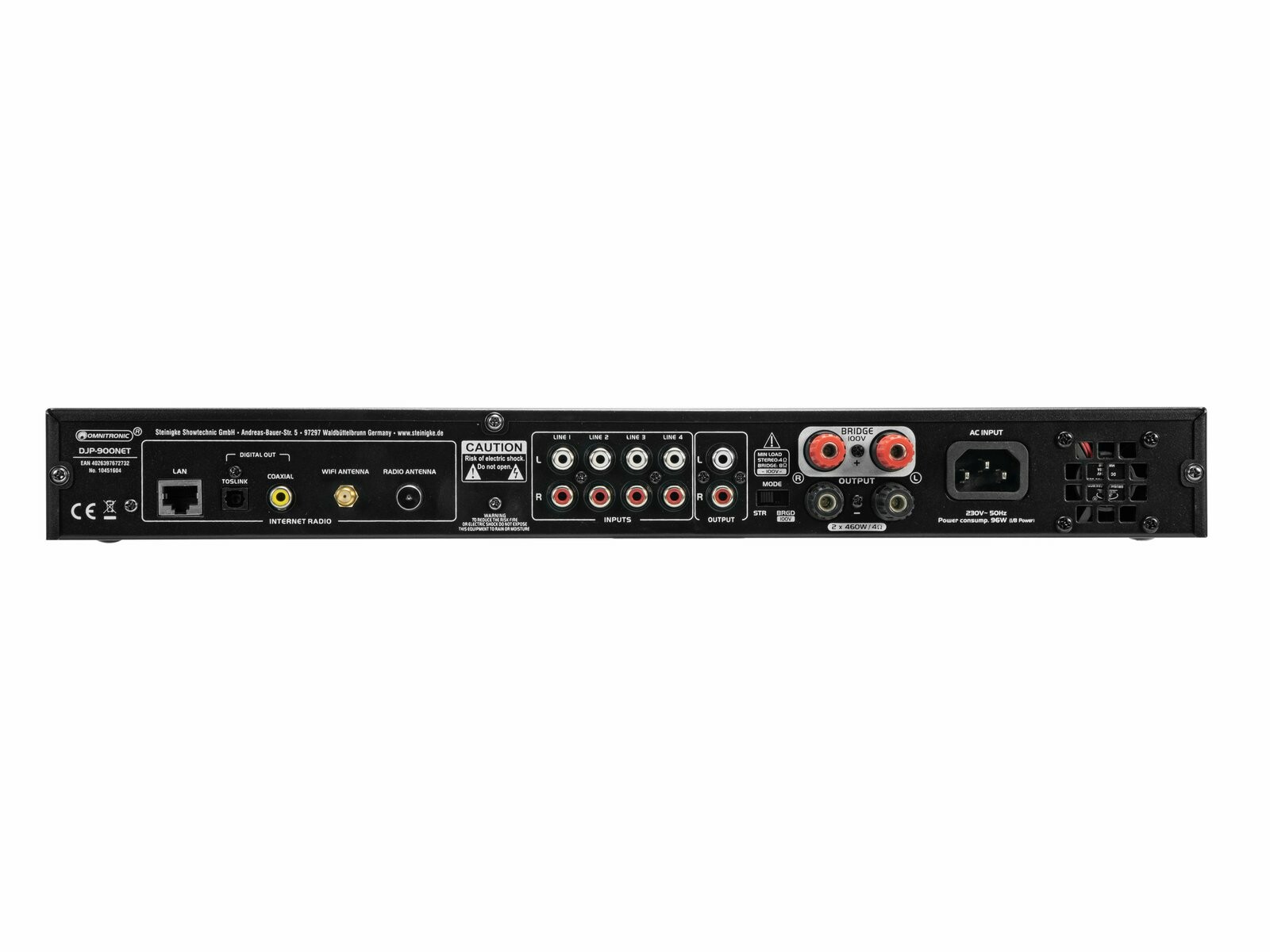

4 stereo line inputs (RCA) on the back panel
3.5 mm AUX input on the front panel
1 combo microphone input with volume control on the front panel
Audio source selector
Controls for volume, bass and treble
Digital and analog audio outputs (Toslink, coaxial, RCA)
PA outputs for low-impedance speakers (4-16 ohms) and 100 V PA speakers
2 operating modes can be selected (stereo or bridge/100V)
Speaker switch-on delay and auto limiters
Extensive protective circuits
Extremely low weight and height due to integrated switch mode power supply
Rugged steel chassis with aluminum front panel
The device is cooled by super silent fan
Controlling by Bluetooth; W-Lan; IR remote control (provided); IR remote control
Multicolor TFT display for easy controlling
Bluetooth: Use a operating range up to 20m
Desktop console housing
(19") 48.3 cm rack installation (provided)
Package contents
1 x Device, 1 x Power cord, 2 x Antenna, 1 x Remote control, 1 x User manual, 1 x Declaration of conformity
Power supply:230 V AC, 50 Hz
Power consumption:96 W 1/8 power
Output power:2 x 460 W RMS (4 ohms)
2 x 240 W RMS (8 ohms)
Max. 900 W bridged (8 ohms)
Max. 260 W bridged (100 V)
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:20 - 20,000 Hz
S/N ratio:>100 dB
WiFi:Standard: IEEE 802.11 b/g/n
Security protocol: WEP/WPA/WPA2
Network connection:Protocol: Ethernet TCP/IP via RJ-45 (F) mounting version, 10/100 Mbit/s
Cooling:Super silent fan
Impedance:4 ohms; 8 ohms; 16 ohms; Public address systems 100V
Impedance:Input 20 kOhm , bal.
Input 10 kOhm , unbal.
Control:Bluetooth; W-Lan; IR remote control (provided); IR remote control
Bluetooth:Version: 4,2 + EDR
Audio player:FM-tuner + Internet radio + BT + DAB+
Housing color:Black
Circuitry:Class D
Display type:Multicolor TFT display
Tuner frequency range:FM 87-108 MHz, DAB(+) 174,928-239,200 MHz
Control elements:Power switch, source selector, level control, EQ controls, mode switch (stereo / bridged/100V); menu, navigation keys, encoder
Controls:Softstart; short-circuit; overheat; overload; VHF; DC voltage
Equalizer:2-band tone control mono
Status LED:Power
Connections:Antenna via 1 x SMA (F) mounting version
Network connection via 1 x RJ-45 (F) mounting version
Input: antenna via 1 x Belling-Lee (F) mounting version
Input: line via 4 x stereo RCA
Input: AUX via 1 x 6.3 mm jack (stereo)
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x stereo RCA
Output: optical via 1 x toslink
Output: co-axial (S/PDIF) via 1 x RCA (F) mounting version
Output: speaker via screw terminal
Channels:Master output: , 2-band tone control EQ
Microphon chanal: 1 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial
Format:MP3, AAC/AAC+; FLAC
Frequency band:2.4 GHz
Range:20 m Bluetooth
Material:Metal
Housing design:Desktop console housing
(19") 48.3 cm rack installation (provided)
Dimensions:Width: 43 cm
Depth: 25 cm
Height: 4,4 cm
Weight:3,50 kg
Remote control
Power supply:3 V DC
Battery:2 x Micro (AAA) included
