Pouzdan trokutasti TRUSS dužine 150cm!

OPIS:

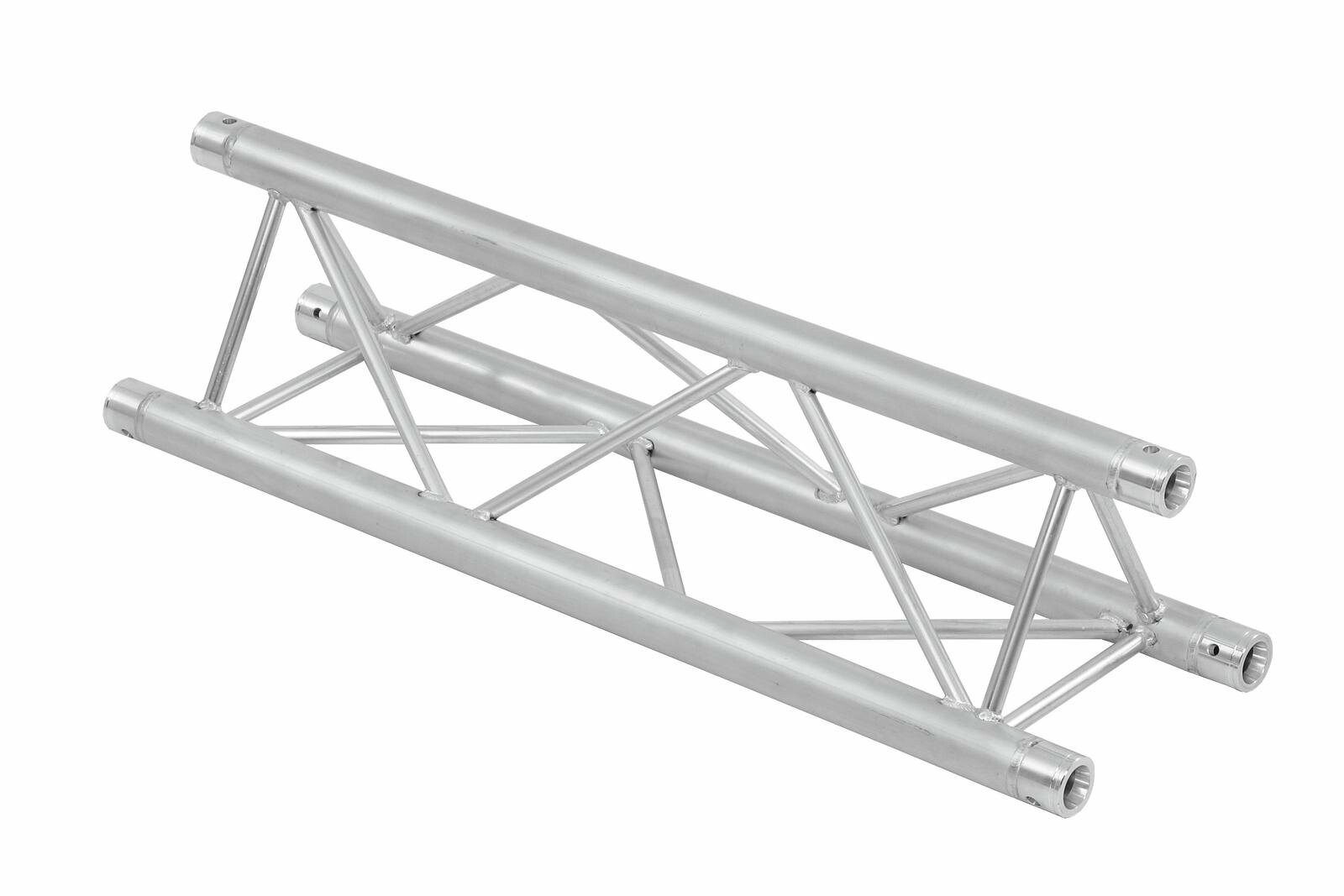

TRILOCK 6082 3-point truss system
TRILOCK 6082 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK 6082 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for even higher loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

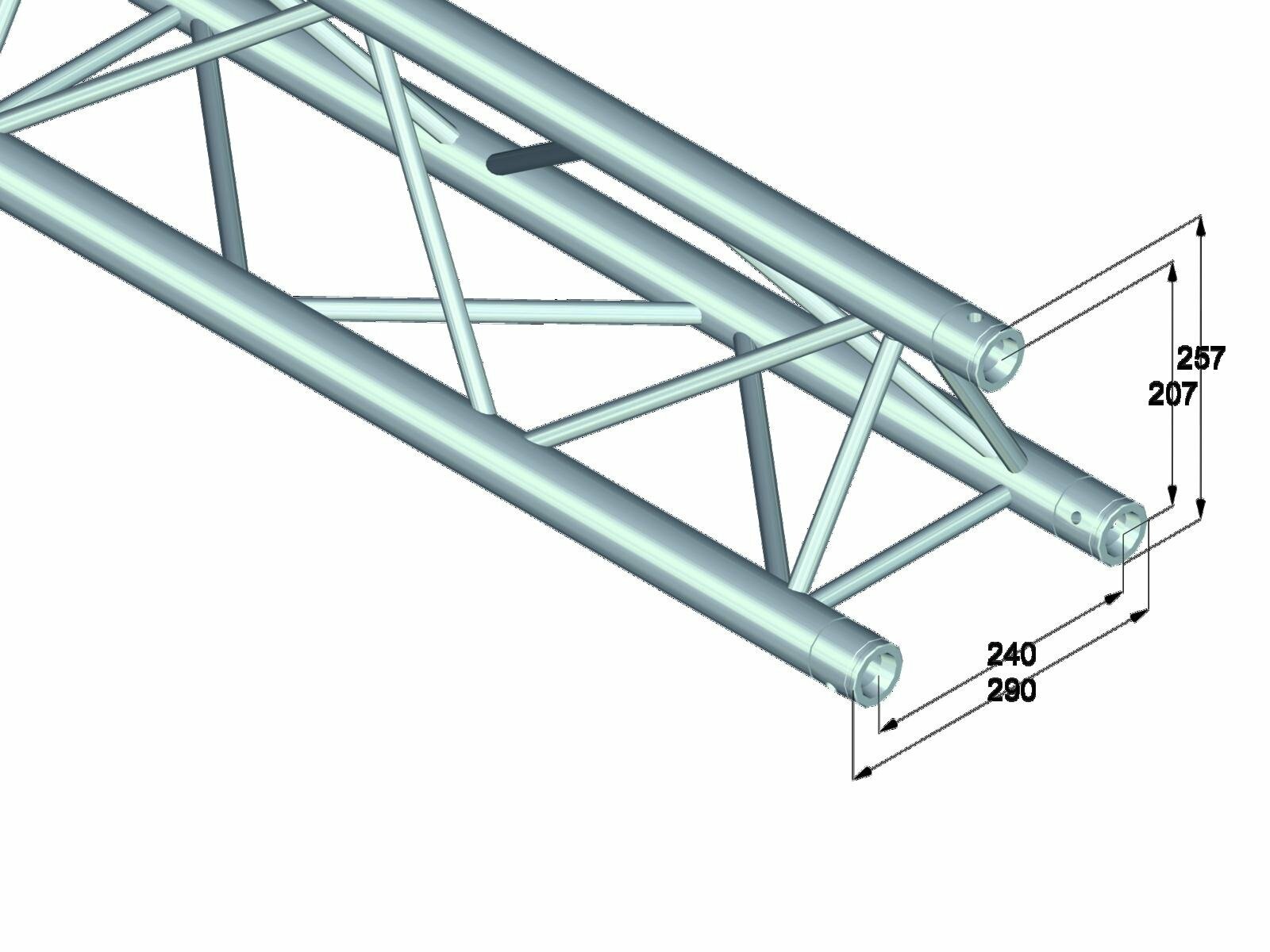

The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 16 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps. With 290 and 257 mm outer dimensions, TRILOCK QTTR is a stable truss system for higher loads and extended durability.


3-point truss system

Low weight

Easy installation

Trusspipe: 50 mm

TÜV Süd certified

For application areas such as: Theater; Trade fair and shop fitting; Clubs/dancing school

For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

1 x connection Set

Construction:Easy installation

Trusspipe:50 mm x 2 mm

Welding technique:TIG-welding

Welding material:AlMg 5

Color:Alu colored

Strut diameter x thickness:16 x 2mm

Dimensions:Length: 1,5 m
Width: 29 cm
Height: 25,70 cm

Weight:6,2 kg
