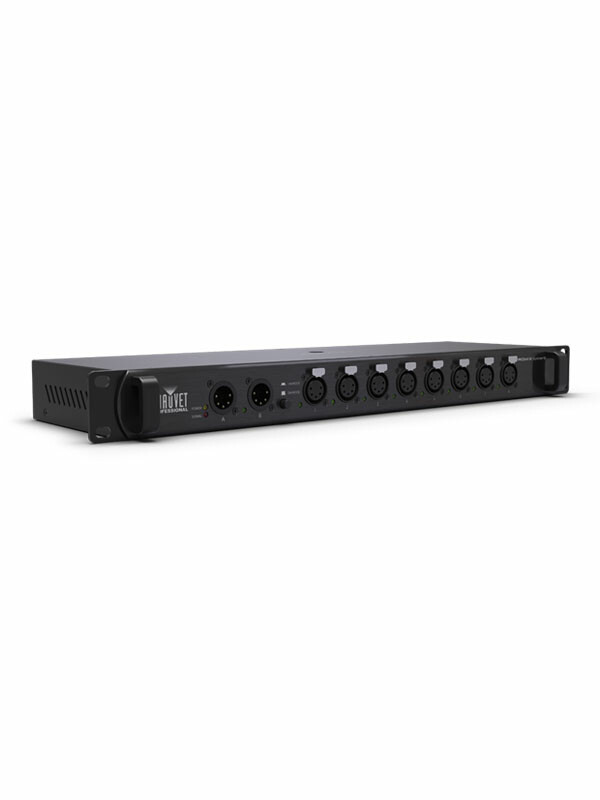

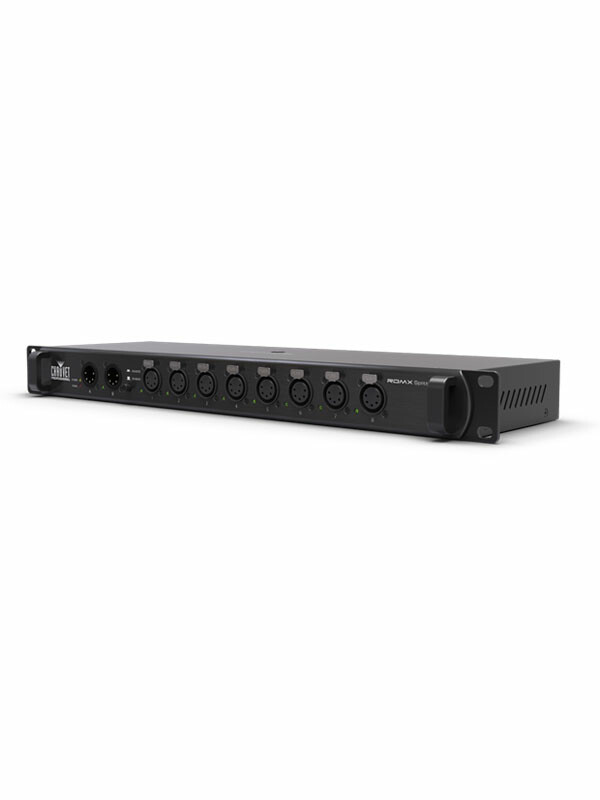

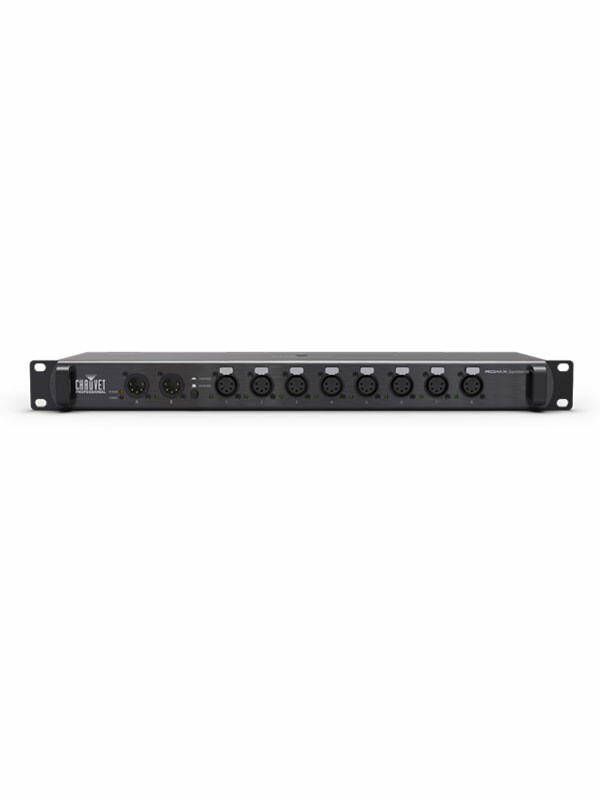

RDMX Splitter 8

Includes: IEC power cable

Data connections: Ethercon In/Out, 5-Pin DMX In (x2), 5-Pin DMX Out (x8)

RDMX Splitter 8 is a versatile RDM and 5-pin DMX opto-splitter with a rugged, durable housing. It features 8 outputs and 2 inputs, so it can instantly go from a 1×8 splitter to a 2×4 splitter for two different universes. To simplify installation next to existing fixtures, PowerCON power linking is also supported to make it easier than ever to isolate, amplify and split a signal. For added versatility, the unit can be either rack or trust-mounted and supports electrical isolation between inputs and outputs up to 1000 V between ports.

AT A GLANCE

Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button; or functions as a 2x4 A/B splitter

Includes power linking to make it easy to install next to existing fixtures, so isolating, amplifying, and splitting signal are now easier than ever

Rugged reinforced housing supports 1U rackmount and mounting to pipe and truss without additional accessories

Electrical isolation between inputs and outputs up to 1,000 V between ports

PowerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present

SPECIFICATIONS

OPTICAL

Dimensions: 19 x 5.75 x 1.77 in (483 x 146 x 45 mm)

Weight: 4.2 lb (1.9 kg)

Exterior Color: Black

Housing Material: Steel and aluminum

Rackmount: 1U

CONNECTIONS

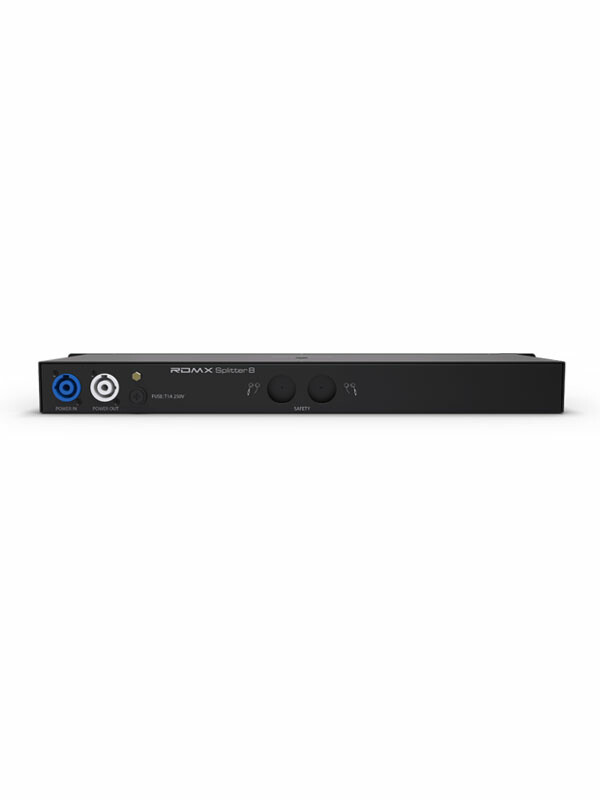

Power Connection: Edison (Local) plug to Neutrik powerCON

Power Input: Neutrik powerCON

Power Output: Neutrik powerCON

Device Data Inputs: 5-pin XLR (2 total)

Device Data Outputs: 5-pin XLR (8 total)

Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX, RDM Pass-thru

Modes: 2 (1x8, 2x4)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 15A

Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz

Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz

Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
