RDM2go

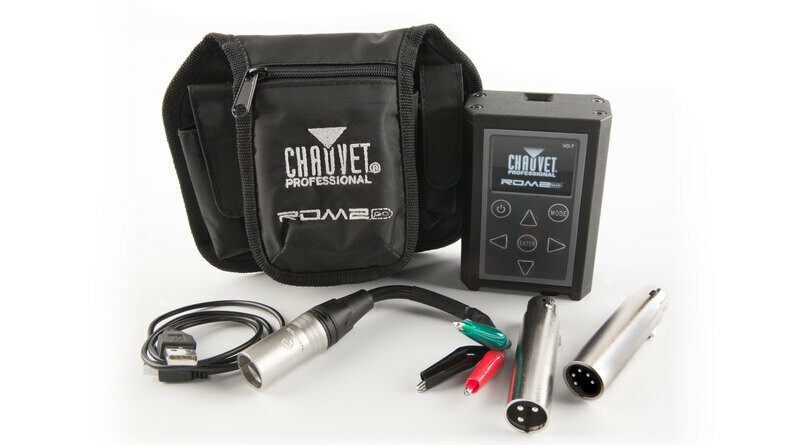

Includes: Carry Pouch, 2 pcs 3- to 5-pin converters, 5-pin male to bare wire adaptor, USB charging cable

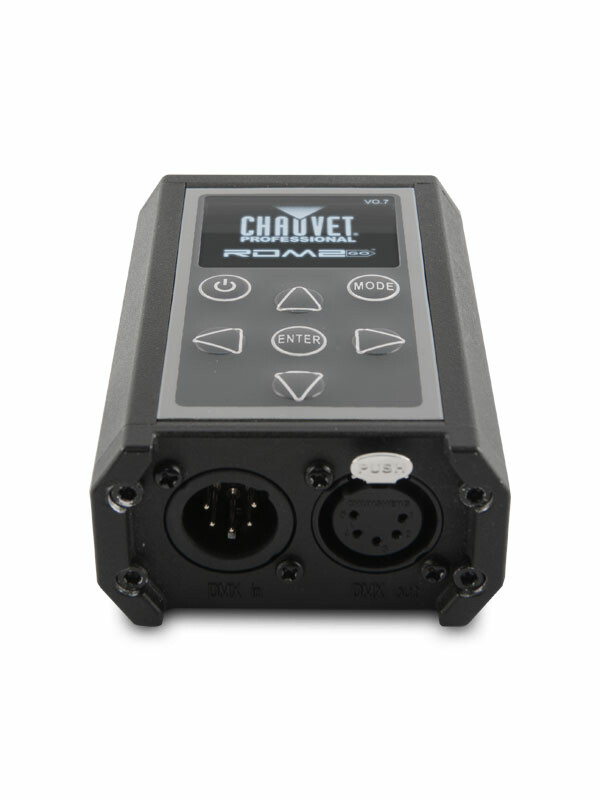

Data connections: 5-pin XLR In/Out

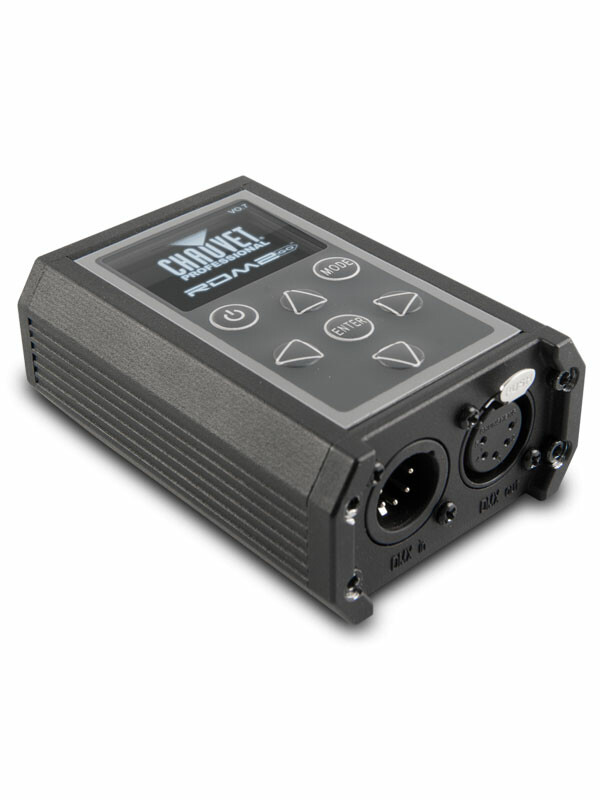

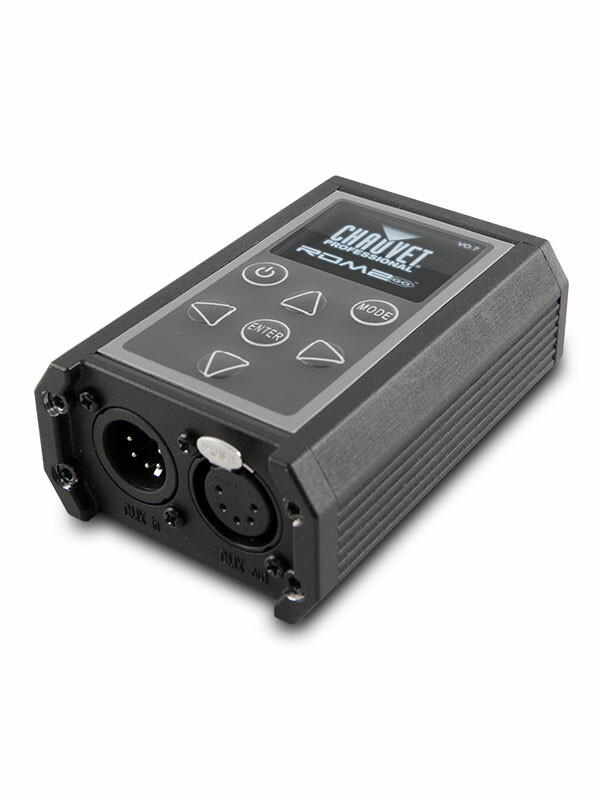

RDM2go is a multi-functional tool for working with fixtures over a DMX/RDM data line. This palm-sized controller performs a multitude of tasks including RDM functionality, DMX snapshot and test-scene record and playback, DMX input and output monitoring. RDM2go features a built-in DMX cable integrity checker, and an easy to read OLED display. It also addresses Chauvet’s Iluminarc IP fixtures that do not have a display. The unit easily recharges via a standard micro USB jack and comes with a convenient carry pouch and DMX connector converters.

AT A GLANCE

Handheld tool for managing fixtures and systems with DMX, RDM, and Ilumicode based control

Easily address, locate and monitor RDM capable fixtures

Check DMX addressing, cabling, and store/playback basic snapshots

Address and set personalities of Ilumicode based architectural fixtures

Comes with connector adaptors, USB charging cord and belt clip pouch

SPECIFICATIONS

DYNAMIC EFFECTS

Standalone Color Mixing: Yes

Color Temperature Presets (Ilumicode): Yes

Dim Modes (Ilumicode): 5

Customizable Programs: Yes

Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 2.76 x 1.52 x 3.92 in (70 x 39 x 100 mm)

Weight: 0.77 lb (0.35 kg)

Exterior Color: Black

Housing Material: Aluminum die-cast

CONNECTIONS

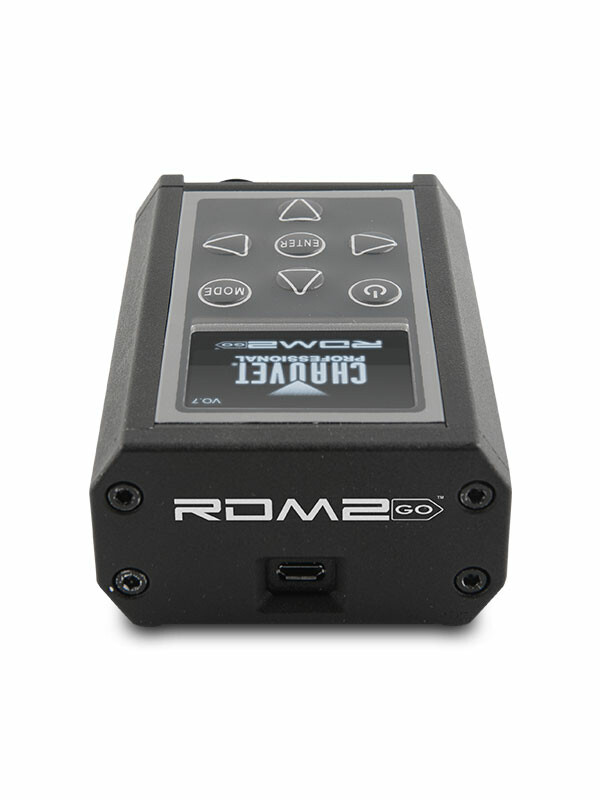

Power Input: Micro USB-B Male

Data Connectors: 5-pin XLR

Cable Length (power): 3 ft (0.91 m)

CONTROL

Protocol(s): DMX, RDM, Ilumicode

DMX Channels: 1, 2, 3, 4, 5, 6 or 7

Modes/Personalities (Ilumicode): 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D)

ELECTRICAL

Power and Current: 18 W, 0.15 A @ 120 V, 60 Hz

Power and Current: 18 W, 0.09 A @ 208 V, 60 Hz

Power and Current: 18 W, 0.08 A @ 230 V, 50 Hz

BATTERY

Battery type: Lithium Ion

Rechargeable: Yes

Battery Life: 8 hours

Battery Power: 3.7 V, 1,200 mAh

CERTIFICATIONS / QUALIFICATIONS

CE

IP Rating: IP20, dry location

WHAT'S INCLUDED

RDM2go

Carry Pouch

2 pc, 3- to 5-pin converters

5-pin male to bare wire adaptor

USB-A Male to Micro USB-B Male (3 ft)

REQUIRED ACCESSORIES

DMX Cables

OPTIONAL ACCESSORIES

DMX Cables
