Includes: Integrated 4.5m Power Cord, interchangable lens plates, eggcrate filter, Recess kit, Sconce Kit
Control: 5-pin And Terminal Block DMX/RDM, WDMX

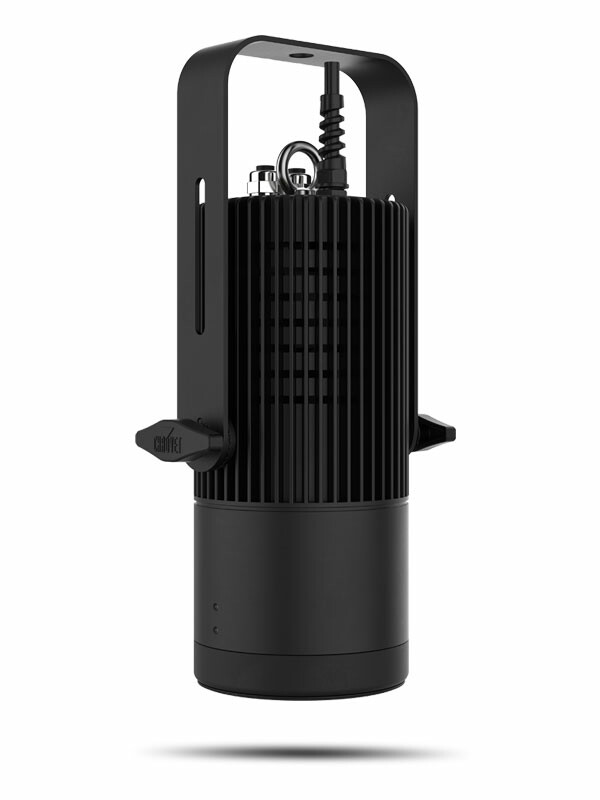

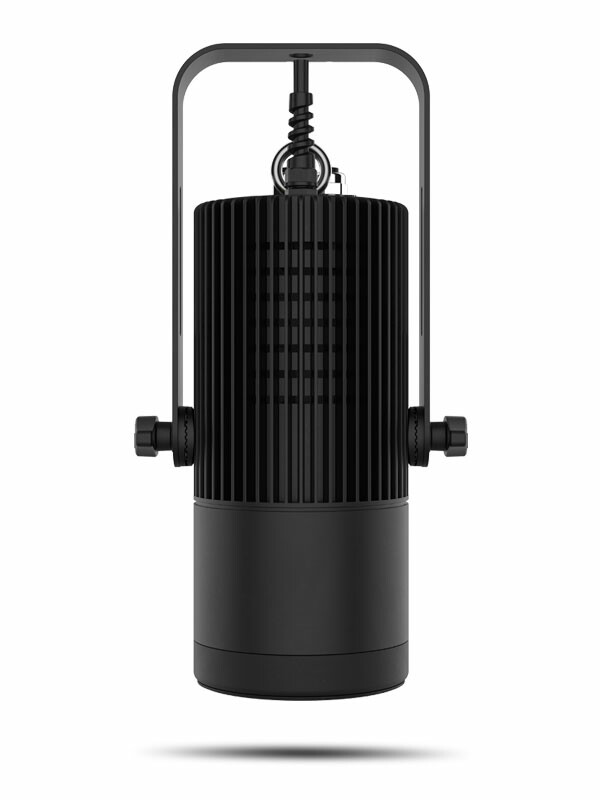

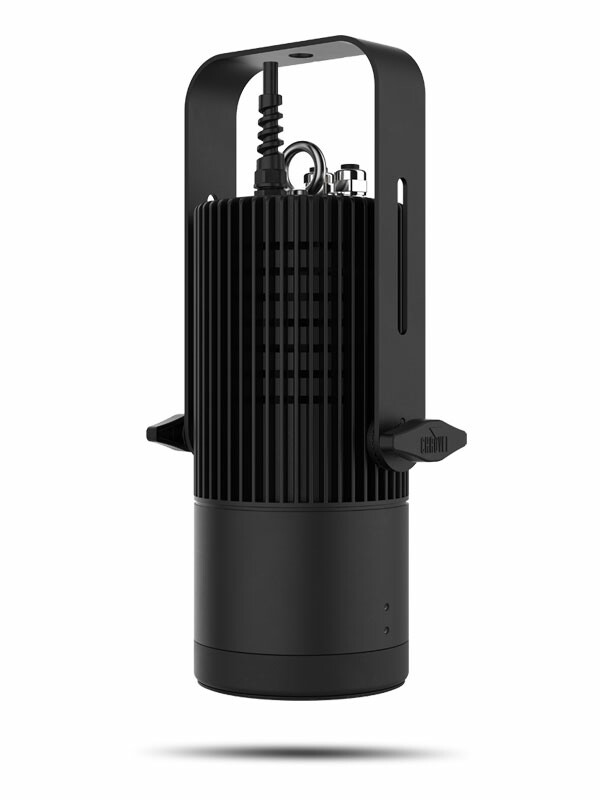

Ovation H-55WW is a small and silent, convection cooled LED houselight with a punchy warm white output and a high CRI, ideal for theatres, worship venues and recital halls or any other application with a smaller trim height. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate.
AT A GLANCE
Compact, warm white, convection cooled house light
Interchangeable lens plates to adapt to different mounting heights
5-pin XLR and terminal blocks for DMX connections
Use included yoke for mounting, or suspend from integrated loop-eye
Included recess and sconce mounting kits
16-bit dimming for ultra-smooth fades
DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
SPECIFICATIONS
OPTICAL
Light Source: 1 LEDs (WW) 129.5 W, (1.45 A), 3157 K, 50,000 hours life expectancy
Color Temperature (at full): 3157 K
CRI: 93
Beam Angle (w/80° filter): 41°
Beam Angle (w/65° lens): 39°
Beam Angle (w/40° lens): 30°
Beam Angle (w/25° lens): 24°
Field Angle (w/80° filter): 126°
Field Angle (w/65° lens): 73°
Field Angle (w/40° lens): 58°
Field Angle (w/25° lens): 39°
Lumens (w/80° filter): 3314
Lumens (w/65° lens): 3797
Lumens (w/40° lens): 4007
Lumens (w/25° lens): 4079
Illuminance (w/80° filter): 131 lux @ 5 m
Illuminance (w/65° lens): 212 lux @ 5 m
Illuminance (w/40° lens): 400 lux @ 5 m
Illuminance (w/25° lens): 728 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)
Weight: 7.4 lb (3.4 kg)
Exterior Color: Black
CONNECTIONS
Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)
CONTROL
Control Protocol: DMX, W-DMX, RDM
DMX Channels: 1, 2 or 5
Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current: 60 W, 0.497 A @ 120 V, 60 Hz
Power and Current: 61 W, 0.297 A @ 208 V, 60 Hz
Power and Current: 63 W, 0.269 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
Ovation H-55WW
65°, 40° and 25° Lens
80° Filter
Egg Crate
Recess and Sconce Mounting Kits
REQUIRED ACCESSORIES
RDM2go or other RDM capable interface for fixture set-up
OPTIONAL ACCESSORIES
W-DMX™ Transmitter
Professional Clamps: CTC-50HC, CTC-50HCN
5-pin DMX Cables
RDM2go™
