Includes: Integrated 4.5m Power Cord, interchangable lens plates, egg crate louvre
Control: 5-pin And Terminal Block DMX/RDM, WDMX

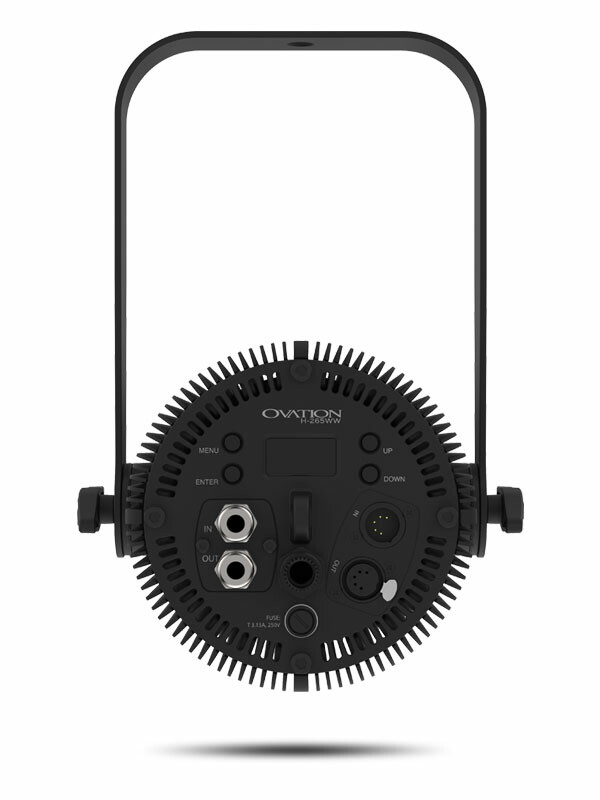

Ovation H-265WW is a silent, convection cooled LED houselight with a powerful warm white light output and a high CRI, ideal for theatres, worship venues and recital halls or any other application where silent operation is crucial. The unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. Interchangeable lenses for height adjustment are another indispensable feature in theatrical and house of worship applications. For even more versatility, the yoke can be completely removed, and the fixture suspended, pendant style, from a loop on the back plate. White housing not available in European Markets.
AT A GLANCE
High-power warm white, convection cooled houselight
Interchangeable lens plates to adapt to different mounting heights
5-pin XLR and terminal blocks for DMX connections
Use included yoke for mounting, or suspend from integrated loop-eye
16-bit dimming for ultra-smooth fades
DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
SPECIFICATIONS
OPTICAL
Light Source: 1 LEDs (WW) 230 W, (2.3 A), 3258 K, 50,000 hours life expectancy
Color Temperature (at full): 3258 K
CRI: 97
Beam Angle (w/80° filter): 40°
Beam Angle (w/65°): 50°
Beam Angle (w/45° lens): 39°
Beam Angle (w/25° lens): 19°
Beam Angle (w/80° filter): 40°
Field Angle (w/80° filter): 132.9°
Field Angle (w/45° lens): 69°
Field Angle (w/25° lens): 36°
Lumens (w/80° filter): 7,912
Lumens (w/65° lens): 8,505
Lumens (w/45° lens): 8,885
Lumens (w/25° lens): 9,139
Illuminance (w/80° filter) : 325 lux @ 5 m
Illuminance (w/65°): 400 lux @ 5 m
Illuminance (w/45° lens): 623 lux @ 5 m
Illuminance (w/25° lens): 1,933 lux @ 5 m
Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 25 kHz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
Weight: 17.8 lb (8.1 kg)
CONNECTIONS
Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)
CONTROL
Control Protocol: DMX, W-DMX, RDM
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1CH, 2CH, 3CH, 6CH)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 149 W, 1.314 A @ 120 V, 60 Hz
Power and Current: 141 W, .738 A @ 208 V, 60 Hz
Power and Current: 140 W, .691 A @ 230 V, 50 Hz
Breaker Size: T3.15 A, 250 V
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
Ovation H-265WW
65°, 45° and 25° Lenses
80° Filter
Egg Crate
OPTIONAL ACCESSORIES
W-DMX Transmitter
Professional Clamps: CTC-50HC, CTC-50HCN
5-pin DMX Cables
RDM2go
ORDERING INFO
Item Code: 03031466
DOWNLOADS
Ovation H-265WW Quick Reference Guide
Ovation H-265WW Quick Reference Guide- Legacy Software
Ovation H-265WW Photometrics Report
Ovation H-265WW DMX Chart- Legacy Software
Ovation H-265WW Specification Sheet
Download ChamSys Personalities File
