Includes: powerCON Power Cord
Control: 3-pin DMX, 5-pin DMX

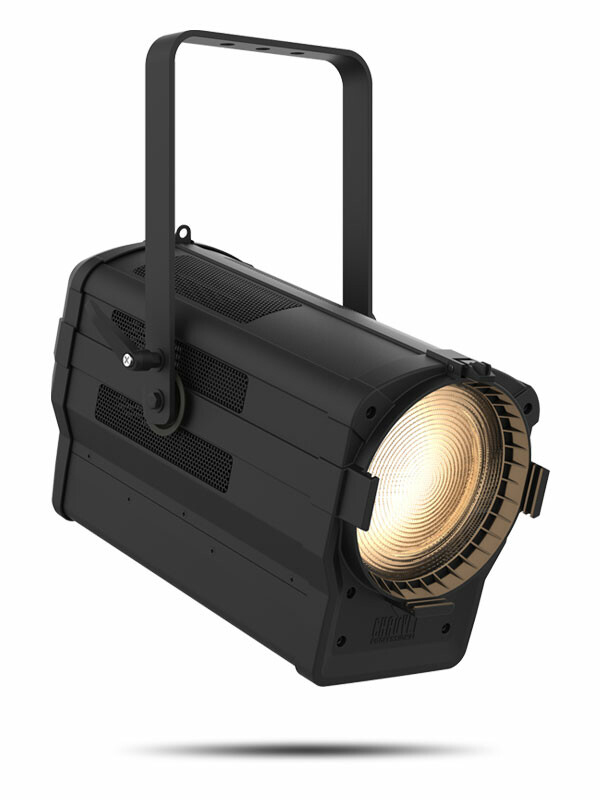

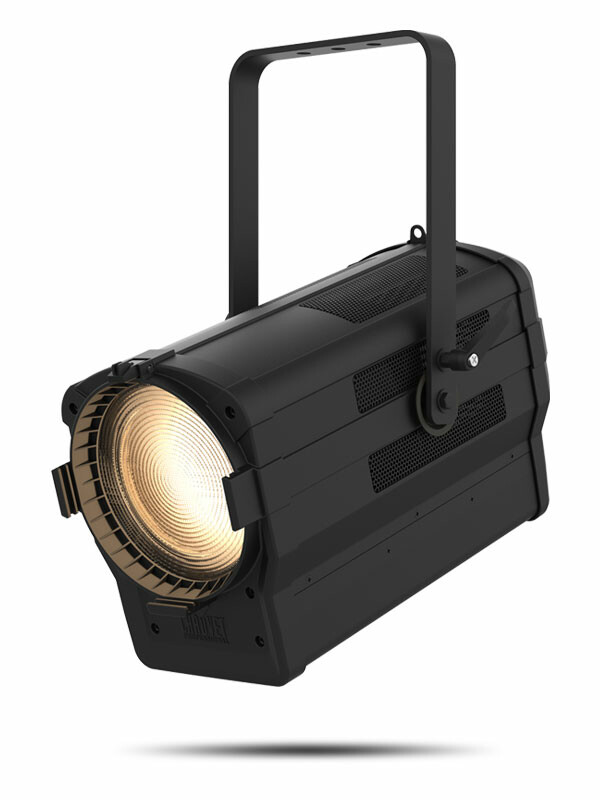

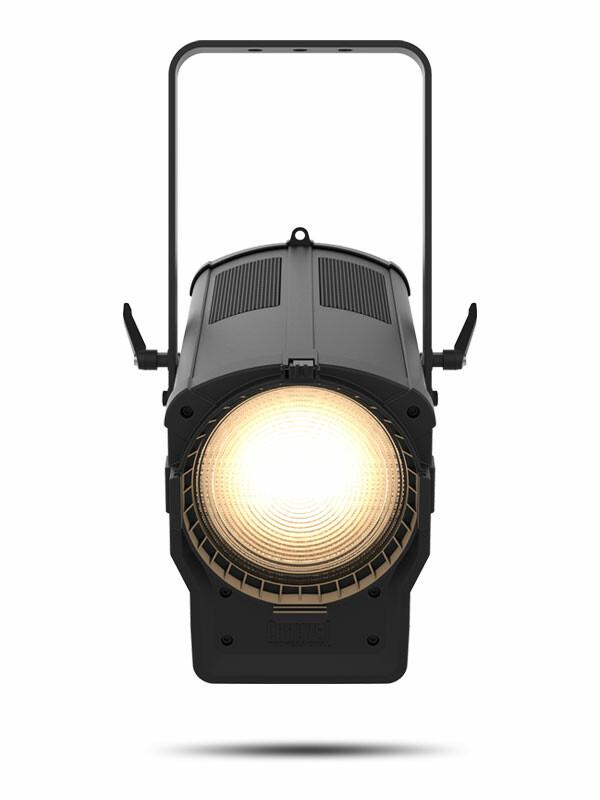

Ovation F-915VW is a high-power, variable white Fresnel-style fixture that utilizes our unique 6-color LED system. This fixture projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 17° – 85° field range allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials.
AT A GLANCE
Variable white LED Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 17° to 85° beam range
Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS
Beautiful 16-bit dimming
Proprietary LED engine delivers tremendous, equal output at all color temperatures
Easy to use on board control of color temperature, zoom and dimming
+/- Green adjustment via DMX or on-board control
Independent color control over the 6-color engine when a splash of color is needed
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications
SPECIFICATIONS
OPTICAL
Light Source: 89 LEDs (6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, 32 lime) 3 W, (960 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 88-92
Beam Angle: 17° to 54°
Field Angle: 30° to 85°
Zoom Range: 17° to 85°
Lumens (30°): 4,143
Lumens (85°): 6,792
Illuminance (30°): 1,748 lux @ 5 m
Illuminance (85°): 414 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: No
CONSTRUCTION / PHYSICAL
Dimensions: 22.41 x 12.59 x 10.82in (569.44 x 320 x 275 mm)
Weight: 18.6 lb (8.5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1, 4, 6, 7, 9, 13, 16 or 18
Modes/Personalities: 8 personalities (1, 4, 6, 7, 9, 13, 16, 18)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
Power and Current: 271 W, 2.3 A @ 120 V, 60 Hz
Power and Current: 262 W, 1.433 A @ 208 V, 60 Hz
Power and Current: 258 W, 1.209 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
WHAT'S INCLUDED
Ovation F-915VW
Neutrik® powerCON® power cord
Gel frame (7.5 in/191 mm accessories)
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5” Barndoor V2
ORDERING INFO
Item Code: 03031392
