Includes: PowerCON power cable

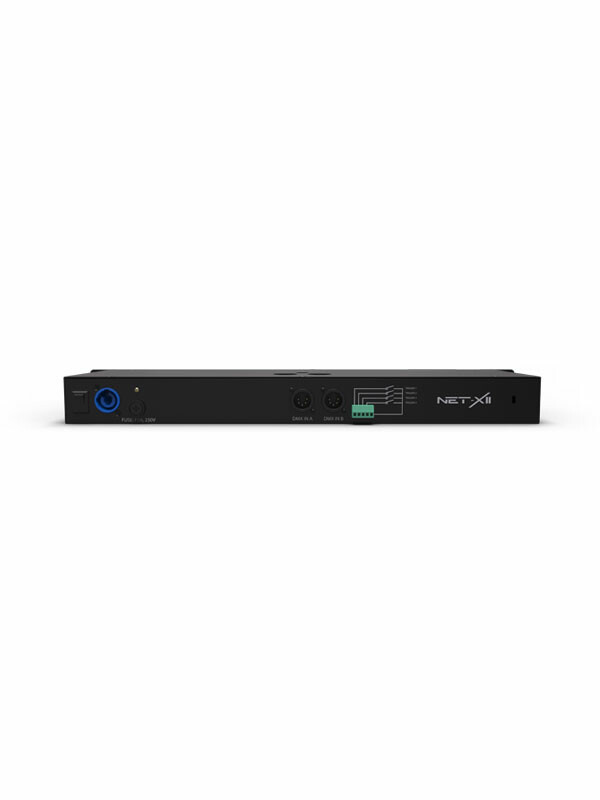

Data connections: Ethercon In/Out, 5-Pin DMX In (x2), 5-Pin DMX Out (x8), Pheonix Connector (x2) for 4 independent contact switches

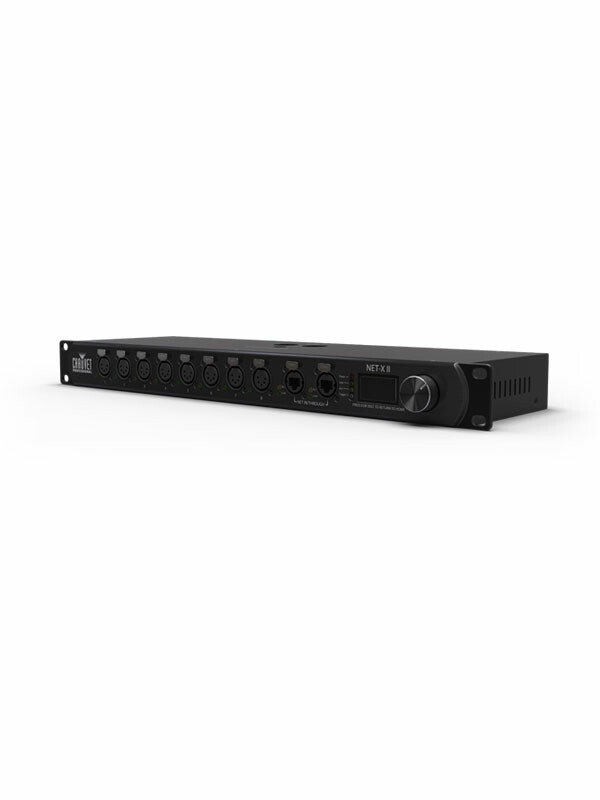

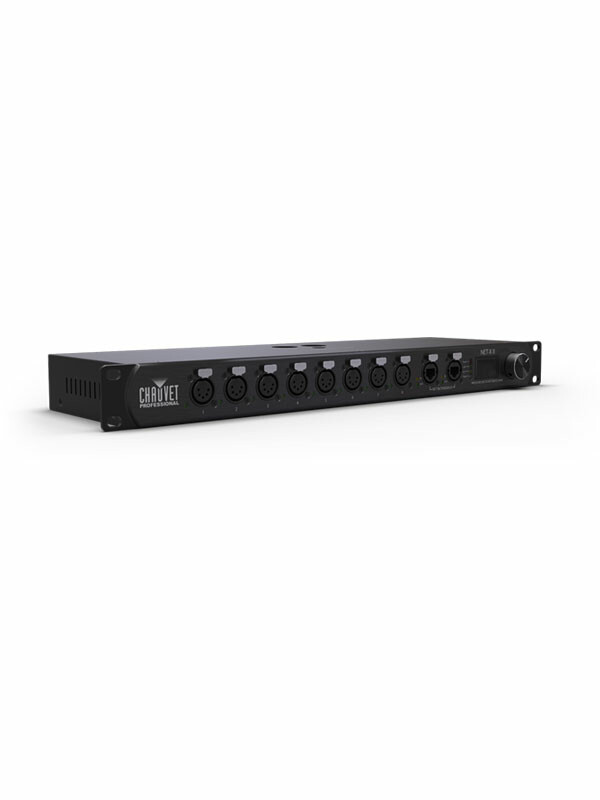

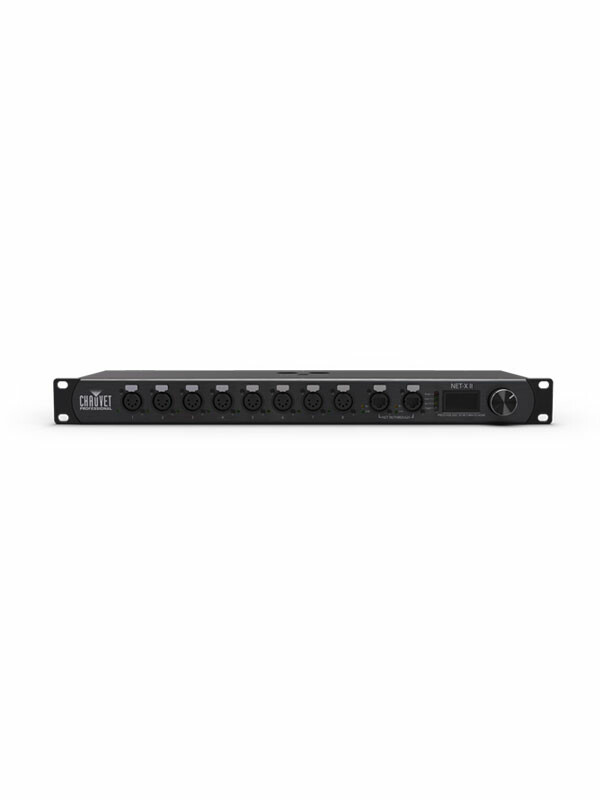

Net-XII is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets, which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs – all optically isolated, and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs (or the Ethernet inputs to mix network inputs with DMX inputs in a single device). LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library, while providing experts with a highly customizable network infrastructure for complex control systems.
AT A GLANCE
5-pin DMX splitter/distributor
Art-Net/sACN to DMX converter, up to 8 universes
DMX to Art-Net/sACN converter, up to 8 universes
Merge two 5-pin DMX universes into a single universe, or merge 2 NET controllers (Art-Net or sACN) into the same universe, then convert to standard 5-pin DMX for the outputs
HTP (highest takes priority) and LTP (latest takes priority) merge functions supported
Backup settings and configurations with same or other NET-X IIs
Webserver supported for remote configuration and backup/update
Integrated Record function allows you to record looks from a controller and save them into memory (10 shows in memory, 100 steps each) to trigger up to 4 shows/zones, 1 at a time, using the 5-wire Phoenix cold contacts on the rear of the unit
Supports RDM over Art-Net for remote fixture management
SPECIFICATIONS
CONSTRUCTION / PHYSICAL
Dimensions: 19 x 6.22 x 1.73 in (483 x 158 x 44 mm)
Weight: 4.6 lb (2.1 kg)
Threaded Bolt: M12
Exterior Color: Black
Housing Material: Steel
Rackmount: 1U
CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic powerKON
Power Input: Seetronic powerKON
Device Data Inputs: Seetronic powerKON® (1 total) and 5-pin XLR (2 total)
Device Data Outputs/Inputs (Assignable): 5-pin XLR (8 total)
Device Date Throughputs: Seetronic etherKON (1 total)
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: Art-Net, DMX, sACN
Merge Support: Yes
Protocol Merging: (2) Art-net consoles, (2) DMX consoles, (2) sACN consoles
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
Net-X II
Seetronic powerKON power cord
Phoenix connector
REQUIRED ACCESSORIES
Compatible Mounting Options: M12 Bolt/Clamp
OPTIONAL ACCESSORIES
Clamps
Neutrik powerCON cables
Neutrik etherCON cables
DMX Cables
DOWNLOADS
Download ChamSys Personalities File
