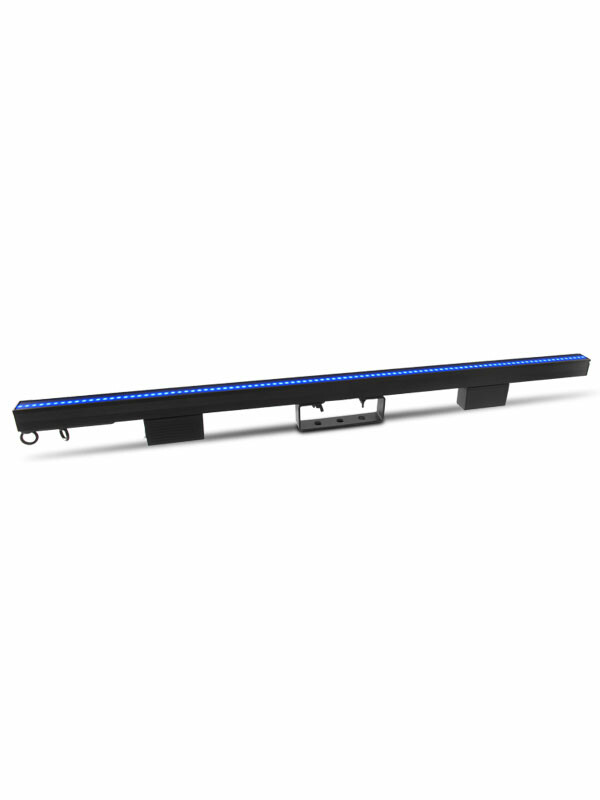

Chauvet Professional EPIX Strip IP

Kataloški broj: EPIXSTRIPIP

ÉPIX Strip IP je dinamično linearno rasvjetno tijelo s IP65 zaštitom i piksel mappingom koje sadrži 100 LED dioda u 1m trake za prikazivanje videa i/ili pokretne grafike. Idealno za festivale, koncertne turneje i instalacije, ovaj svestrani uređaj dolazi s kupolastim i ravnim dodacima i zadivljujućim ugrađenim sadržajem koji vam omogućuje jednostavno konfiguriranje i programiranje emisija u nekoliko minuta uz minimalno vrijeme/napor za fenomenalan efekt. Napajanje i upravljanje njime putem Chauvet Professional ÉPIX Drive 2000 IP na Art-Net, Kling-Net ili saACN (streaming ACN).





AT A GLANCE

  • Pixel-mapping 1-meter 100 x 1 IP65 rated LED strip for showing video and/or motion graphics

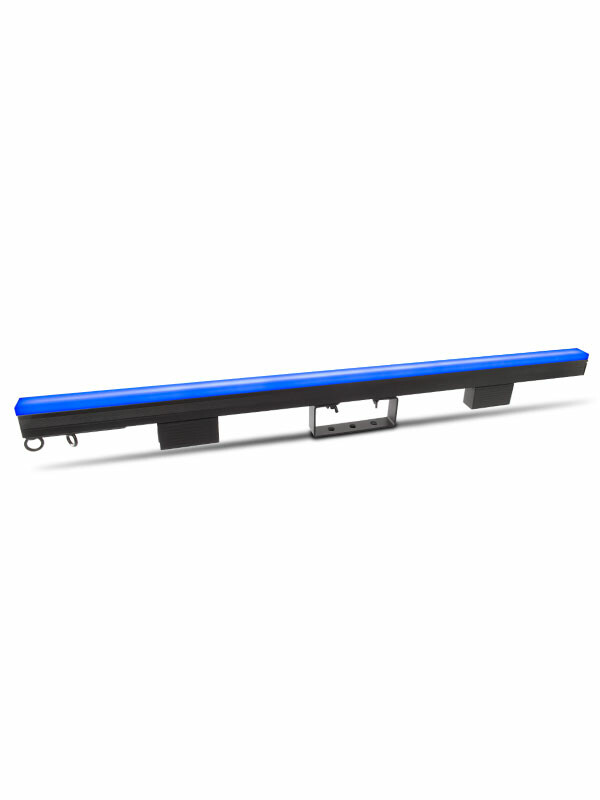

  • Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast.
  • Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.
  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
  • Reduce programming time and increase application by using the alternate personalities of 7, 8 channels, 5, 10, 20, and 50 sections, or use the Pixel personality for use with video servers

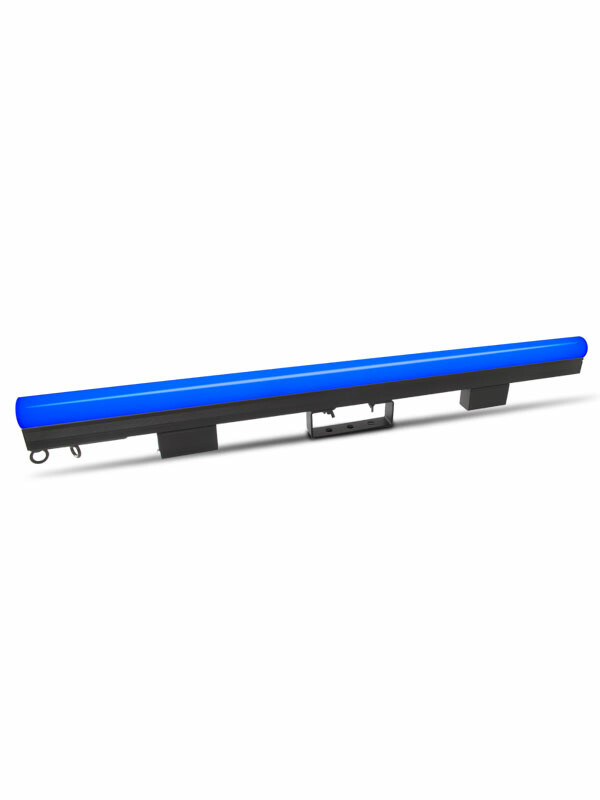

  • Increase viewing angle by using the included dome accessory
  • ÉPIX Drive 2000 IP required for operation

SPECIFICATIONS

OPTICAL

  • Light Source: 100 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
  • Viewing Angle (with installed square milky filter): 160°
  • Viewing Angle (with optional dome filter): 160°
  • Illuminance – open: 8,640 NITS
  • Illuminance - square milky filter (installed): 2,470 NITS
  • Illuminance - black stealth filter (included): 1,455 NITS
  • Illuminance - round milky filter (optional): 1,360 NITS
  • Pixels: 100 x 1
  • Pixel Pitch: 10 mm
  • Refresh Rate: 4800 Hz (S-PWM)



CONSTRUCTION / PHYSICAL

  • Dimensions (with installed square milky filter ): 39.37 x 3.93 x 1.33 in (1000 x 100 X 34 mm)
  • Dimensions: (with included black stealth filter) 39.37 x 3.46 x 1.33 in (1000 x 88 x 34 mm)
  • Dimensions (with optional dome filter): 39.37x 5.03 x 1.77 in (1000 x 128 X 45 mm)
  • Weight: 6 lb (2.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum



CONNECTIONS

  • Data Connectors: 4-pin XLR
  • Physical Linking: 10 inline ÉPIX Strip IP per port of Drive 2000 IP
  • Total max. cable length (shielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 210 ft (64 m)
  • Max. cable length (shielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 65 ft (20 m)
  • Max. cable length (shielded cables) between ÉPIX IP fixtures: 60 ft (18 m)
  • Total max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 300 ft (91 m)
  • Max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 150 ft (45 m)
  • Max. cable length (unshielded cables) between ÉPIX IP fixtures: 100 ft (30 m)



CONTROL

  • Control Protocol: Art-Net, Kling-Net, sACN
  • Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, 150 or 300



ELECTRICAL

  • Power and Current: 35 W, 0.292 A @ 120 V, 60 Hz
  • Power and Current: 44 W, 0.210A @ 208 V, 60 Hz
  • Power and Current: 44 W, 0.195 A @ 230 V, 50 Hz



CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • MET Listing Number: E113093-1101
  • US Safety: UL 8750, UL 1573
  • Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166



WHAT'S INCLUDED

  • ÉPIX Strip IP 50
  • Square milky filter (installed)
  • Round milky filter (included in box)
  • Black stealth filter (included in box)



REQUIRED ACCESSORIES

  • Controller (required): ÉPIX Drive 2000 IP
  • Compatible Mounting Options: M12 Bolt/Clamp (rear mounting)



OPTIONAL ACCESSORIES
