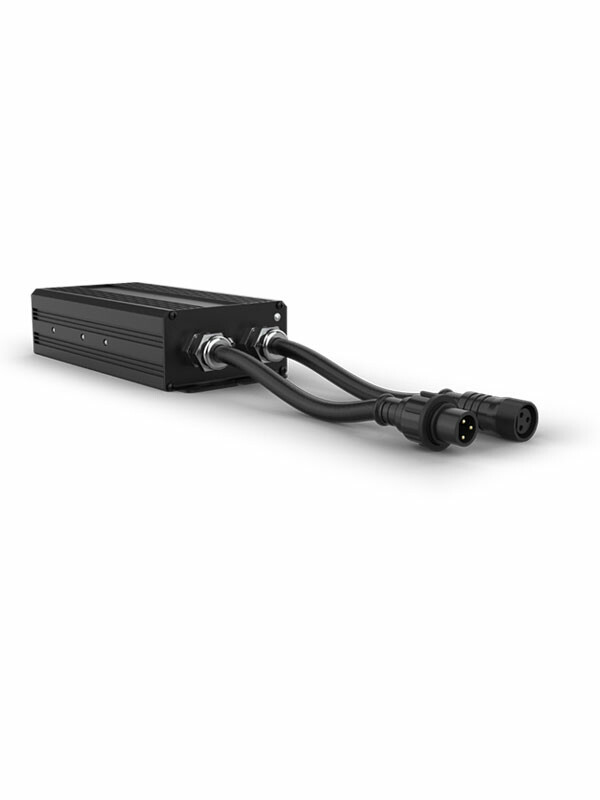

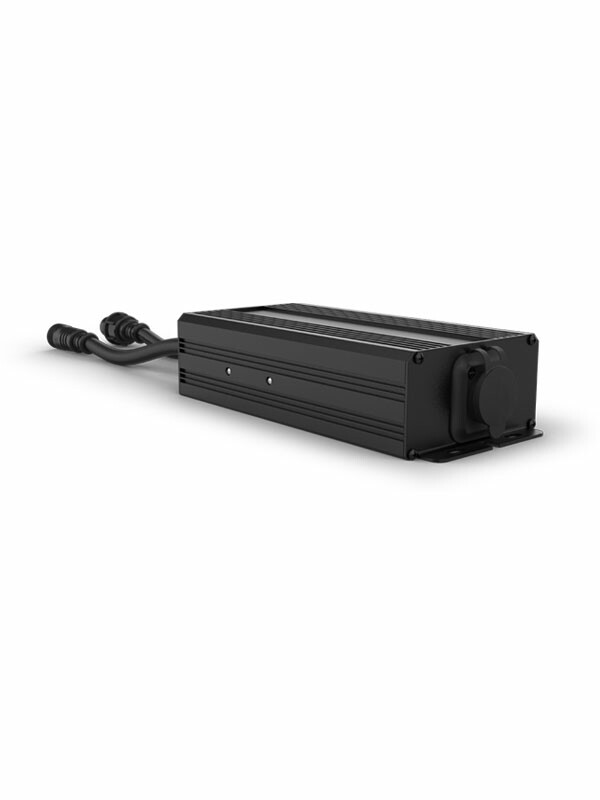

ÉPIX Flex Boost je in-line pojačivač napona od 24 V koji udvostručuje kapacitet svakog izlaza na ÉPIX Flex Driveu i količine ÉPIX Flex 20 traka koju kontrolira. S ovom plug-and-play operacijom nema potrebe za lemljenjem u sustav.

AT A GLANCE

• IP65 outdoor rated in-line voltage booster for ÉPIX Flex 20
• Works when connected to the outputs of the ÉPIX Flex Driver

SPECIFICATIONS

CONSTRUCTION / PHYSICAL

• Dimensions: 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)
• Weight: 4.4 lb (2 kg)
• Exterior Color: Black
• Housing Material: Aluminum

CONNECTIONS

• Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Device inputs: (1) 3-pin male IP Flex
• Device Outputs: (1) 3-pin female IP Flex
• Physical Linking: 2 inline ÉPIX Flex 20
• Cable Length (signal): 1.16 ft (0.355 m)
• Cable Length (power): 5 ft (1.5 m)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 200 W, 1.6 A @ 120 V, 60 Hz
• Power and Current: 200 W, 0.87 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP65, outdoor/wet, with pressure equalizing M14 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• MET Listing Number: E114016-1144
• US Safety: UL 8750
• Canadian Safety: CSA C22.2 No. 250.13-12

WHAT'S INCLUDED

• ÉPIX Flex Boost
• Seetronic Powerkon power cord

REQUIRED ACCESSORIES

• Accessories (required): ÉPIX Flex Drive
• Compatible Mounting Options: M12 Bolt/Clamp

OPTIONAL ACCESSORIES

• Clamps
• IP Flex Cables
• Seetronic Powerkon cables
• DMX Cables

RELATED PRODUCTS

ÉPIX Flex 20

ÉPIX Flex Drive
