Uključuje: IP PowerKon kabel za napajanje, gel okvir
Kontrola: 5-pinski DMX

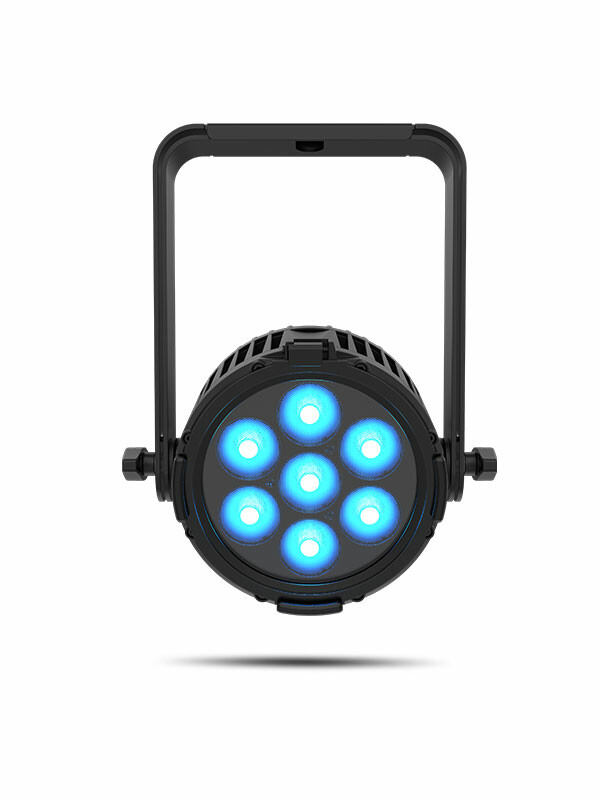

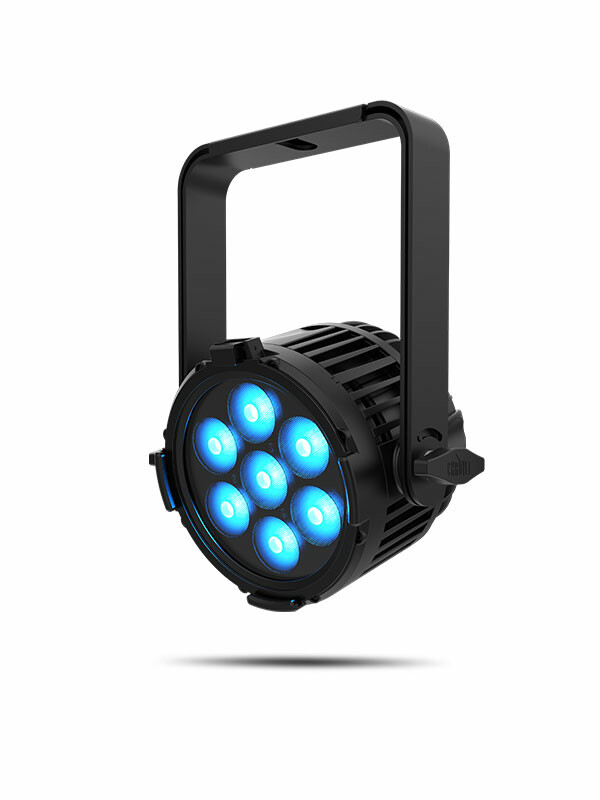

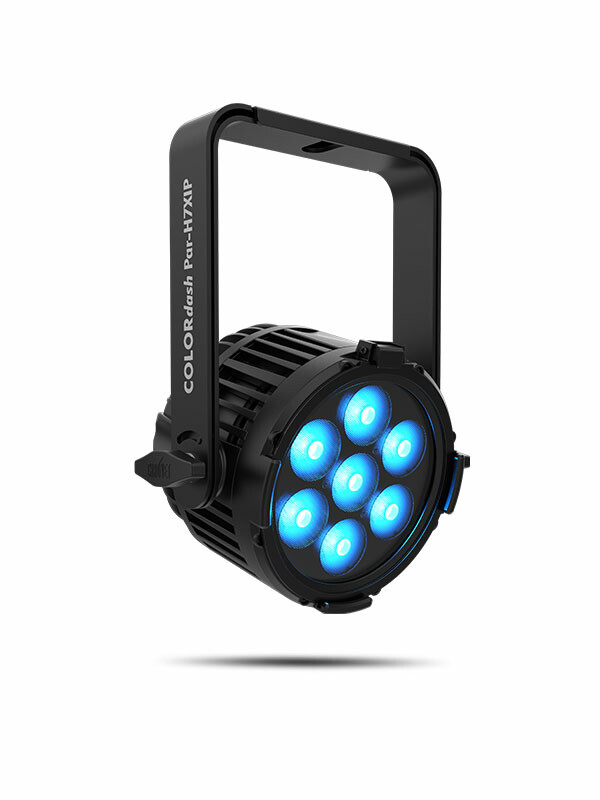

In the rig or on the floor, live or on camera, indoor or out, the compact COLORdash PAR H7X IP RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision, weighing in under 8 lbs while delivering over 2,600 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H7X IP offers convenient operation and excellent performance as an IP65-rated all-weather die-cast workhorse at home in any environment.
AT A GLANCE
Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
At home in any weather conditions with IP rated power and DMX connections
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
Easy to read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Double-bracketed yoke with omega bracket doubles as floor stand
SPECIFICATIONS
OPTICAL
Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (513 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10,000 K
Color Temperature (at full): 11,477 K
Beam Angle: 23°
Field Angle: 37.9°
Lumens: 2664
Illuminance (total): 583 lux @ 5 m
Selectable PWM: 600, 1.2k, 2k, 4k, 6k, 25k Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Customizable Programs: No
CONSTRUCTION / PHYSICAL
Dimensions: 6.7 x 9.6 x 9.8 in (170 x 243.4 x 248.1 mm)
Weight: 7.4 lbs (3.4 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast

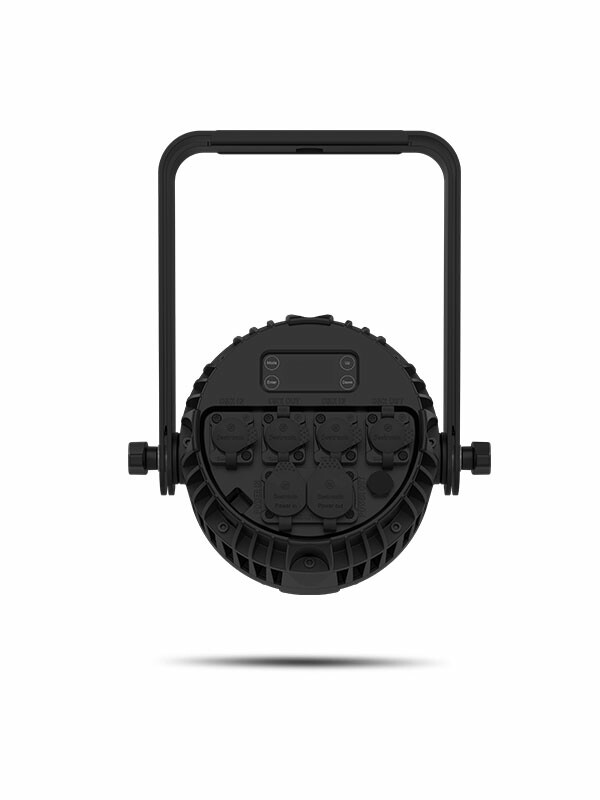

CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powercon IP65
Power Output: Seetronic Powercon IP65
Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 19 units @ 120 V; 34 units @ 208 V; 37 units @ 230 V
Power and Current: 71 W, .604 A @ 120 V, 60 Hz
Power and Current: 69 W, .352 A @ 208 V, 60 Hz
Power and Current: 68 W, .318 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
Colordash Par H7XIP
Seetronic powercon IP65 power cord
Gel frame holder (6.5 in /165 mm)
Gel frame
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powercon power linking cables
5-pin IP or Non-IP DMX Cables
