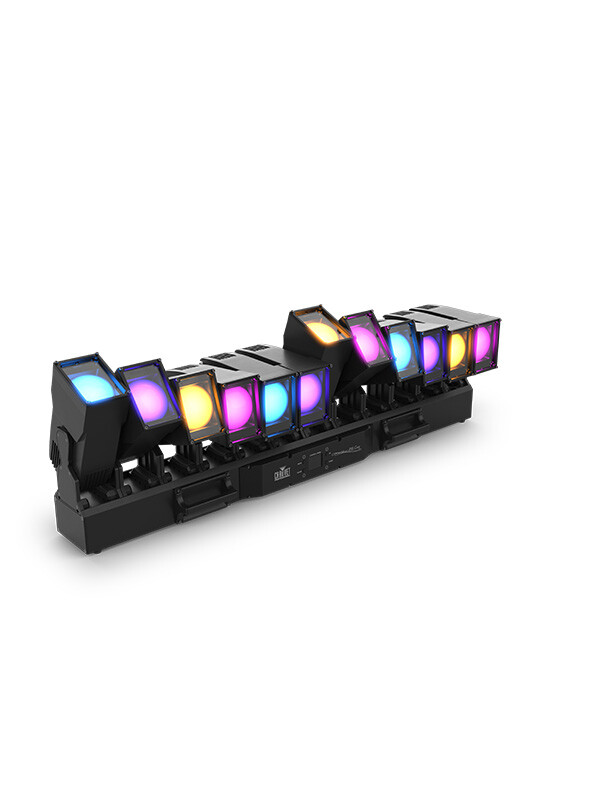

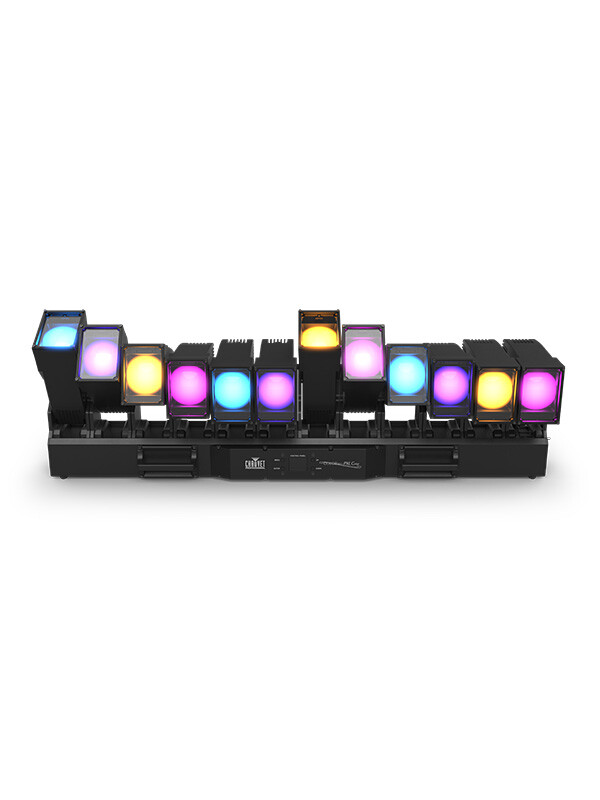

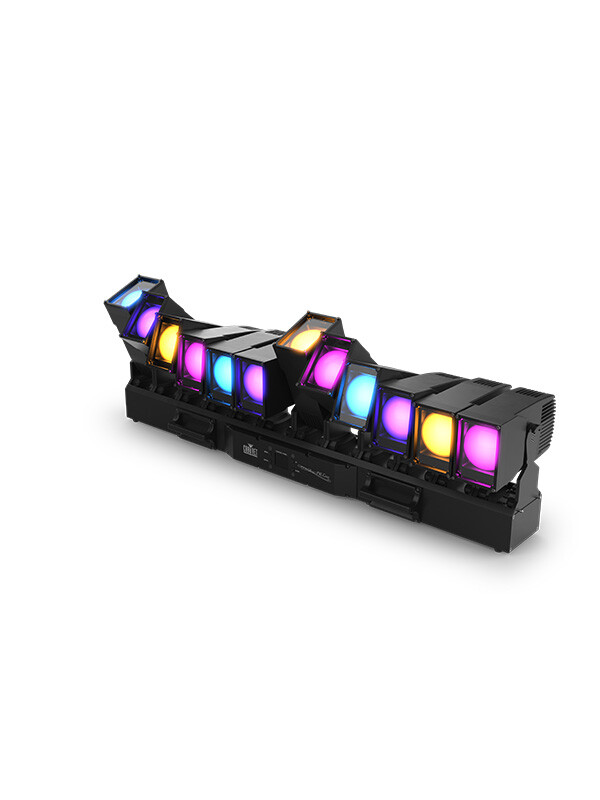

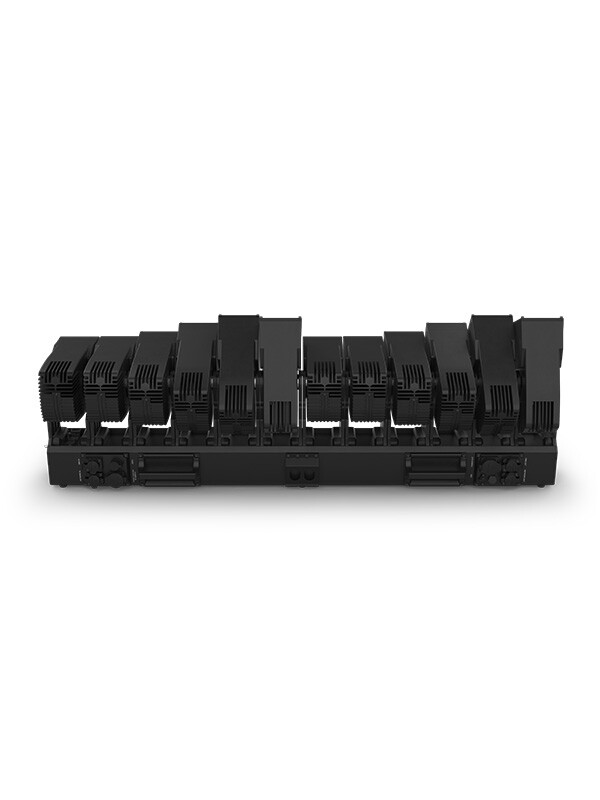

COLORado PXL Curve 12 Besprijekorna simetrija, intenzivan volumetrijski izgled i IP65 svestranost koja se uklapa u sve vremenske prilike.

Podignite individualnu PXL motorizaciju i kontrolu zumiranja na snagu dvanaest s najnovijim IP65 uređajem linije COLORado PXL.

• Bezbrižnost u svakom trenutku - IP65 svestranost koja fura bez obzira na vremenske prilike.

• Izražajnost u svakom pokretu – Iskoristite individualnu kontrolu nagiba na dvanaesterostrukoj razini.

• Oblik žudnje - Zumirajte više od bold kako biste stvorili snažan volumetrijski izgled.

COLORado PXL Curve 12 motorizirani je i fully pixel-mappable RGBW LED batten sa IP65 zaštitom i individualnom kontrolom zumiranja, nagiba i boja preko dvanaest neovisnih glava. Snažan volumetrijski izgled lako se postiže s uređajem dizajniranim za pojednostavljenje kontrole složenih efekata.

Nude se osnovni ili napredni način rada. Opsežna biblioteka ugrađenih efekata uključuje virtualne goboe, makronaredbe pokreta i kontrolu boje prednjeg/pozadinskog plana. Dual-mode kontrola omogućuje pokretanje tilt, zoom, dimming, strobe i drugih funkcija s rasvjetne konzole, što omogućuje jednostavni pixel-mapping. Lako mijenjajte brzinu i parametre nagiba (tilta) kako biste trenutno dobili iznenadne dinamičke efekte.

Besprekidna montaža od-ruba-do-ruba održava razmak između piksela. Izlaz projektiran tako da odgovara ostalim uređajima iz serije PXL. COLORado PXL Curve 12 zna DMX, sACN, Art-Net, Kling-Net i RDM.

AT A GLANCE

IP65 batten with (12) 45W RGBW LEDs. (12) individually controllable tilting heads with a 5.7° to 36.3°zoom range. Maintains pixel pitch between fixtures.

Quiet and quick operation of 200° of tilt of each if (12) heads

Quiet and quick operation of (12) individual zoom zones

Fully pixel mappable

Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects

DMX, SACN, Art-Net, and Kling-Net control for full flexibility

RDM Enabled for remote addressing and trouble shooting

5.7° to 36.3° zoom range for variable beam sizes

TRUE1 compatible power input/output ports

IP65-rated 5 pin DMX and TCP/IP input/output ports

IP65-rated USBc software upload port

Slotted Omega brackets for easy hanging on truss

SPECIFICATIONS

OPTICAL

Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy

Color Temperature (range): 2700 to 8000 K

Beam Angle Spot: 5.7°

Beam Angle Flood: 26.8°

Beam Angle 50% Zoom: 13.8°

Field Angle Spot: 9°

Field Angle Flood: 33.9°

Field Angle 50% Zoom: 19.2°

Cutoff Angle Spot: 9.9°

Cutoff Angle Flood: 36.3°

Cutoff Angle 50% Zoom: 21.6°

Zoom Range: 5.7° to 36.3°

Lumens: 5,807 lm

Illuminance (Spot) : 38,727 lux @ 5 m

Illuminance (Flood) : 1,120 lux @ 5 m

Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS

Tilt: 200°

Tilt Range: 60°, 180°, 200°

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 20Hz

Standalone Color Mixing: No

Color Temperature Presets: Yes

Dim Modes: 5

Built-in Automated Programs: Yes

Customizable Programs: Yes

Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm)

Weight: 76 lb (34.5 kg)

Exterior Color: Black

Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

CONNECTIONS

Power Connection: Edison (Local) plug to Seetronic Powercon IP65

Power Input: Seetronic Powercon IP65

Power Output: Seetronic Powercon IP65

Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65

Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet

DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch

Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch

sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch

Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V

Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz

Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz

Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz

Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

CE, MET, UKCA, FCC

IP Rating: IP65, temporary outdoor/wet use

Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT'S INCLUDED

COLORADO PXL Curve 12

(2) Omega brackets

Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES

Professional Clamps

Neutrik TRUE1 power linking cables

5-pin DMX Cables

Ethercon Cables
