COLORado Expo W

Uključuje: IP PowerCon kabel za napajanje, gel okvir
Kontrola: 5-pinski DMX

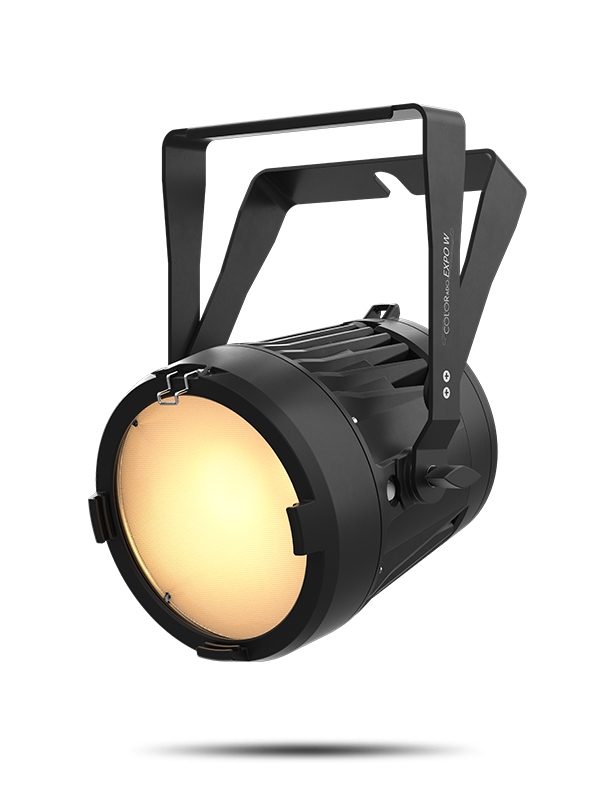

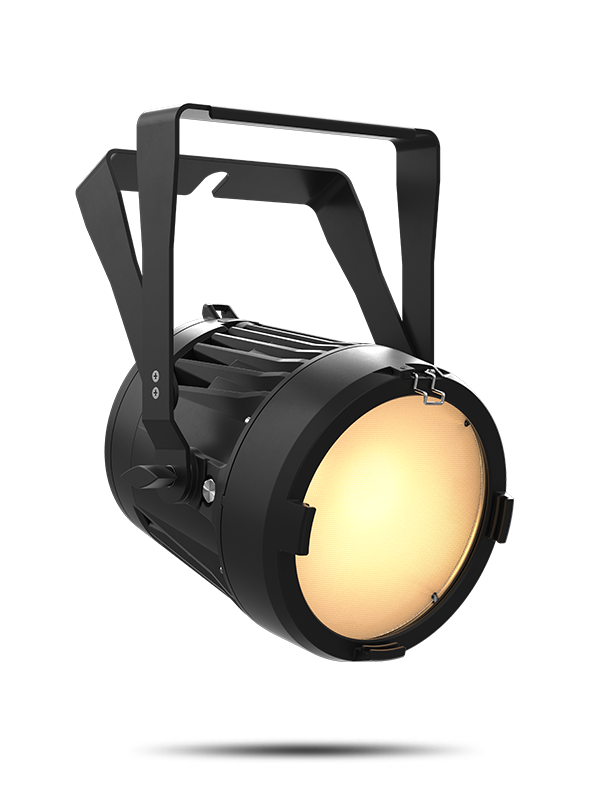

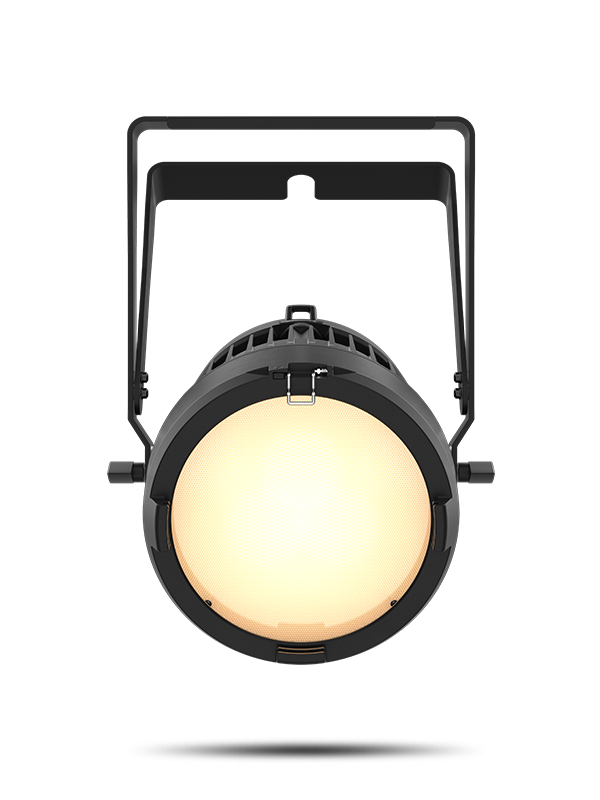

COLORado Expo W is a rugged IP65-rated indoor/outdoor wash light that projects over 5,000 lumens of extremely high quality 3200K warm white light with a 12° beam angle. High-resolution 16-bit dimming is perfectly smooth and manually adjusting output is intuitively easy with its onboard rotary dimming dial. Phenomenal CRI and TLCI scores, selectable PWM, and included gel accessories make the COLORado Expo W a versatile instrument, on-site or on camera, in any setting.

AT A GLANCE

• Professional Clamps : CTC-50HC, CTC-50HCN
• 5-pin DMX Cables

SPECIFICATIONS

OPTICAL

• Light Source: 1 LED (WW) 117 W, (2.187 mA), 3283 K 50,000 hours life expectancy.
• Color Temperature (at full): 3283
• CRI: 97.9
• TLCI: 98
• Beam Angle: 12.7°
• Field Angle: 23.4°
• Lumens : 5237
• Illuminance (49°): 254 lux @ 5 m
• Illuminance (total) : 2403 lux @ 5 m
• Selectable PWM: 600Hz, 1200Hz, 2000Hz, 2400Hz, 6000Hz, 18,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes
•

CONSTRUCTION / PHYSICAL

• Dimensions: 11.42 x 9 x 15.83 in (290 x 228 x 402 mm)
• Weight: 16.4 lb (7.4 kg)
• Exterior Color: Black
• Housing Material: Magnesium alloy
• Accessory Holder/Gel Frame Size: 7.5 in (190 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1ch, 2ch, 3ch, 6ch)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 8 units @ 100 V; 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V; 18 units @ 240 V
• Power and Current: 150 W, 1.495 A @ 100 V, 60 Hz [9.6 A inrush]
• Power and Current: 149 W, 1.234 A @ 120 V, 60 Hz [7.4 A inrush]
• Power and Current: 145 W, 0.723 A @ 208 V, 60 Hz [6.4 A inrush]
• Power and Current: 145 W, 0.657A @ 230 V, 50 Hz [6.8 A inrush]
• Power and Current: 145 W, 0.633 A @ 240 V, 50 Hz [7.0 A inrush]
• Power and Current (resting): 7 W, 0.100 A @ 100 V, 60 Hz
• Power and Current (resting): 7 W, 0.098 A @ 120 V, 60 Hz
• Power and Current (resting): 6 W, 0.115 A @ 208 V, 60 Hz
• Power and Current (resting): 6 W, 0.121 A @ 230 V, 50 Hz
• Power and Current (resting): 6 W, 0.125 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, ETL, cULus, UKCA
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

WHAT'S INCLUDED

• COLORado Expo W
• Seetronic Powerkon IP65 power cord
• Gel Frame
• Omega Bracket
• Warranty Card
• Quick Reference Guide
