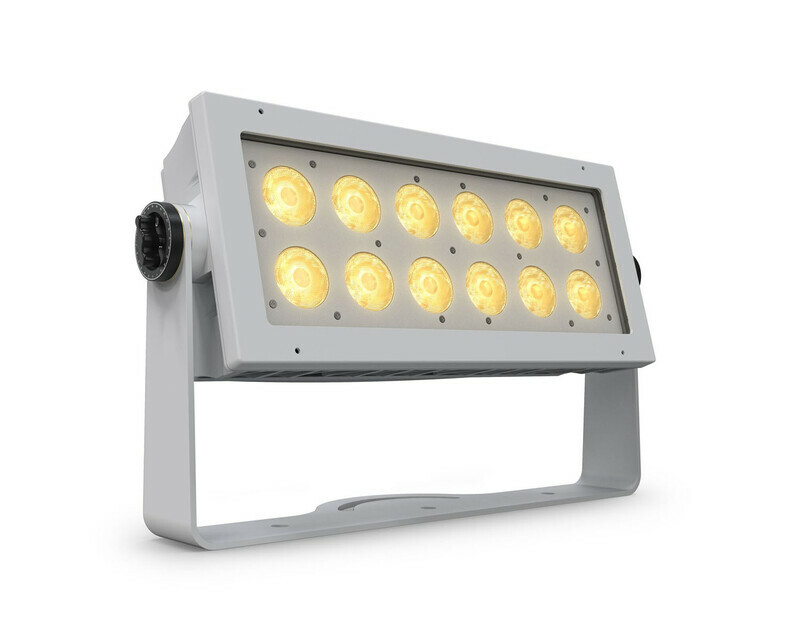

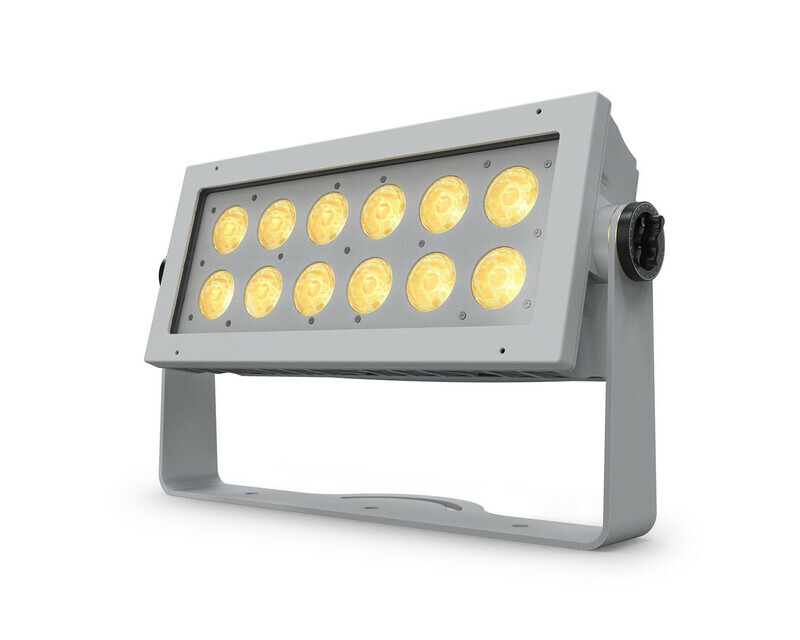

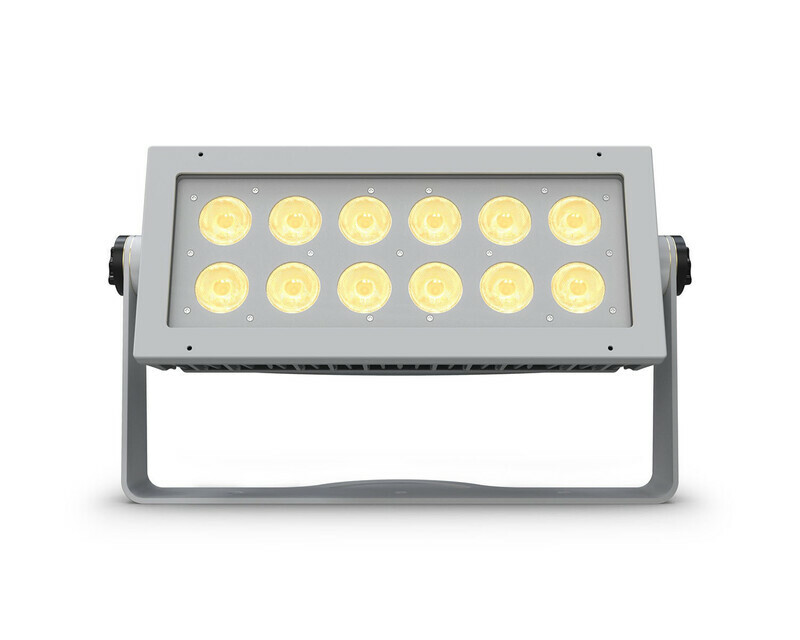

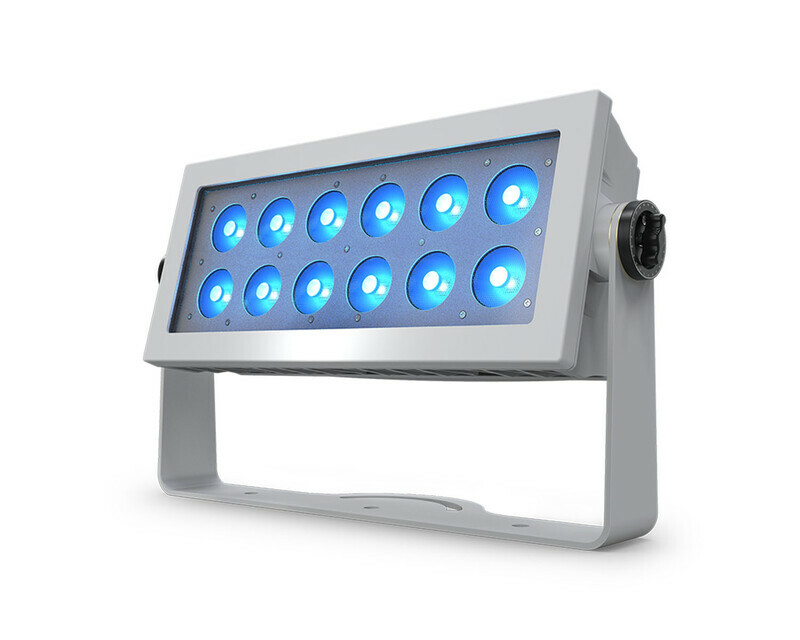

Ilumipanel ML iz Iluminarca je arhitektonski RGBL LED wash panel reflektor velikog formata i sa IP-67 zaštitom za vanjsku primjenu. 12 RGBL LED x 20W.
Savršen za osvjetljavanje zgrada u hrabrim, prekrasnim bojama, uključuje niz filtara za širenje zraka koji se lako postavljaju kako bi odgovarao primjeni bilo koje veličine.
Instalacija je brza i jednostavna, dok se elegantno kućište uklapa u okoliš.
Precizna optika eliminira raznobojne sjene, a RGBL (crvena, zeleno plava, limeta) LED diode daju čistu, pravu bijelu i gotovo neograničenu paletu upečatljivih boja.

• 4-in-1 RGBL Color Mixing
• 50,000 hour LED Lifespan
• Beam Angle: 6.5º, or change with optional Beam Filters
• Illuminance: 10,926 lux @ 5 m
• IP Rating: 67
• Integrated Yoke
• Optional Beam Spread Filters can be applied without breaking IP Seal

Downloads:

 Ilumipanel ML IES Files

 Ilumipanel ML Photometrics Report

 Ilumipanel ML User Manual

 Ilumipanel ML Quick Reference Guide

 Ilumipanel ML Specifications

 2D Drawing

 3D Drawing

Specifications

Light Source and Optical Specifications

• Light Source: 12 LED (quad-color RGBL) 20 W, (1 A)
• Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: 6°
• Optional Optics: Medium Filter, Wide Filter, Very Wide, Asymmetrical Filter
• Beam Angle: Installed Optics: 6.5°, Medium Filter: 19.7°, Wide Filter: 32.8°, Very Wide Filter: 33.5°, Asymmetrical Filter: 34.9° x 11.8°
• Field Angle: Installed Optics: 11.6°, Medium Filter: 41.1°, Wide Filter: 65.7°, Very Wide Filter: 73.6°, Asymmetrical Filter: 66° x 28.5°
• Cutoff Angle: Installed Optics: 19.9°, Medium Filter: 61.5°, Wide Filter: 162.1°, Very Wide Filter: 168.7°, Asymmetrical Filter: 162.4° x 51.2°
• Lumens: Installed Optics: 7,045, Medium Filter: 6,022, Wide Filter: 5,086, Very Wide Filter: 5,006, Asymmetrical Filter: 5,884
• Iluminance: Installed Optics: 10,926 lux @ 5 m, Medium Filter: 1,244 lux @ 5 m, Wide Filter: 350 lux @ 5 m, Very Wide Filter: 266 lux @ 5 m, Asymmetrical Filter: 967 lux @ 5 m
• Efficacy At Full: 38 lm/W
• Color Temperature Presets: 1800K - 10000K

Construction & Physical Specifications

• Dimensions: 20.9 x 7.9 x 10.1 in (530 x 200 x 256 mm)
• Fixture Color: Off white, C5-M
• Housing Material: Cast aluminum
• Lens Cover: Impact resistant glass
• Mounting Options: Bracket, Hole Diameter 13M
• Weight: 27.6 lb (12.6 kg)

Control Specifications

• Control Protocol: USITT/DMX-512a/RDM
• Operating Modes: Selectable personalities
• Personalities:
• Solid (1-Channel)
• Arc 1 (3-Channel)
• Arc 1+D (4-Channel)
• Arc 2 (4-Channel)
• Arc 2+D (5-Channel)
• Arc Full (8-Channel)
• Special 1 (15-Channel)
• Special 2 (9-Channel)
• Data Connections:
• 6.25 ft (1.9 m) waterproof cable, bare wired to hardwired
• Fixture Setup: RDM Only
• Standalone Control: Yes
• Recommended Control Cable Specification: Gepco DLC224

Electrical System Specifications

• Electronic
• Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 184 W, 1.54 A @ 120 V, 60 Hz, PF: 0.98
• 178 W, 0.93 A @ 208 V, 60 Hz, PF: 0.91
• 177 W, 0.84 A @ 230 V, 50 Hz, PF: 0.90
• 177 W, 0.79 A @ 277 V, 60 Hz, PF: 0.79
• Power Supply: Electronic internal
• Recommended Power Cable: 14 AWG (3 x 2.08 mm2)

Thermal Specifications

• BTUs At Various Voltages:
• 628 BTUs/hr @ 120 V, 60 Hz
• 607 BTUs/hr @ 208 V, 60 Hz
• 604 BTUs/hr @ 230 V, 50 Hz
• 604 BTUs/hr @ 277 V, 50 Hz
• Cooling: Convection
• Minimum Distance To Flammable Surface: .98 ft (0.3 m)
• Minimum Distance To Illuminated Surface: 3.28 ft (1 m)
• Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
• Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)

Regulatory & Voluntary Qualification

• Environment Details: Outdoor/wet, with pressure equalizing M12 GORE valve. Please refer to the User Manual for more detailed information on installation.
• Environment Locations: Wet
• Impact Resistance Rating: IK10
• Installation Orientation: Any
• Vibration Rating: 3G
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Wind Load Rating: EPA: 1.044 ft²

Accessories

• Included: Filter Frame
• Optional: Medium filter, Wide filter, Very Wide, Asymmetrical Filter
• Required: RDM Device

Order Code

• Ilumipanel ML: ILUMIPANELML
• Ilumipanel ML Medium Spread Filter: ILUMIPANELMLM
• Ilumipanel ML Wide Spread Filter: ILUMIPANELMLW
• Ilumipanel ML Very Wide Spread Filter: ILUMIPANELMLVW
• Ilumipanel ML Asymmetrical Spread Filter: ILUMIPANELMLASYM
