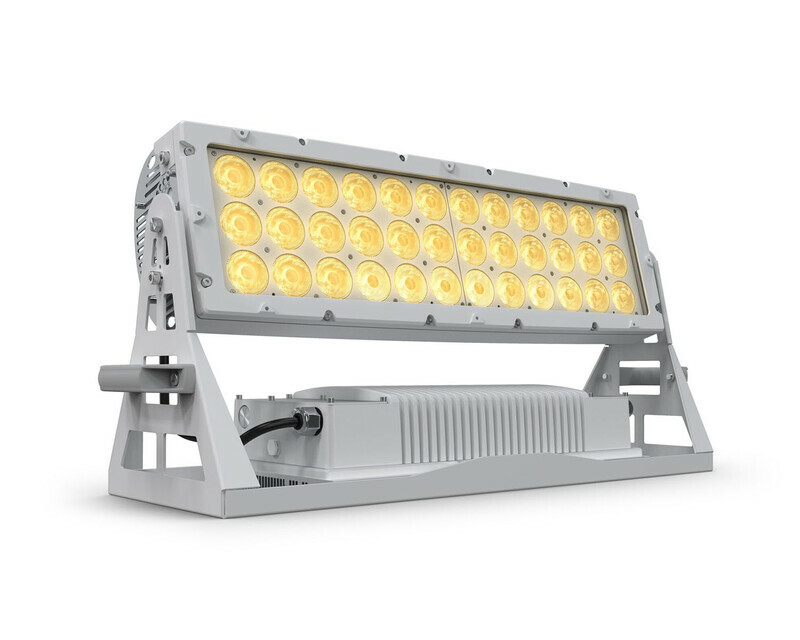

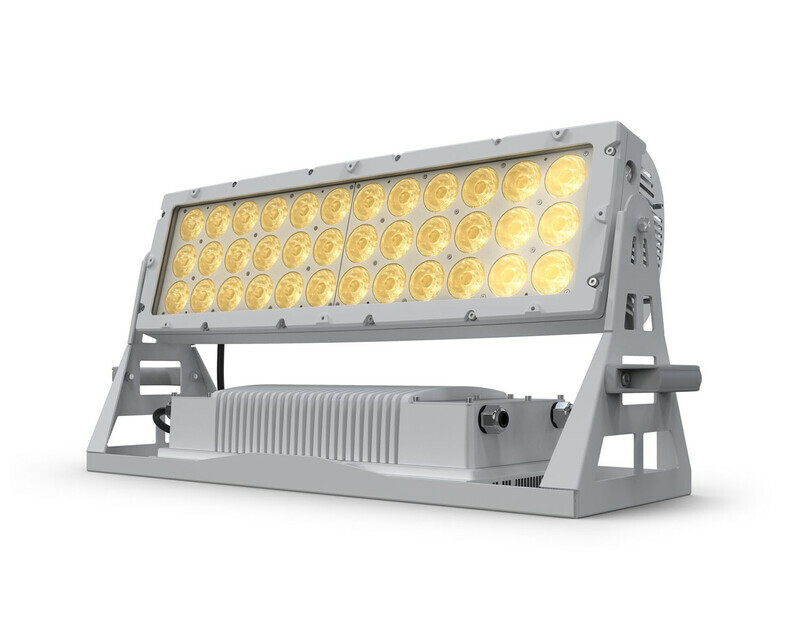

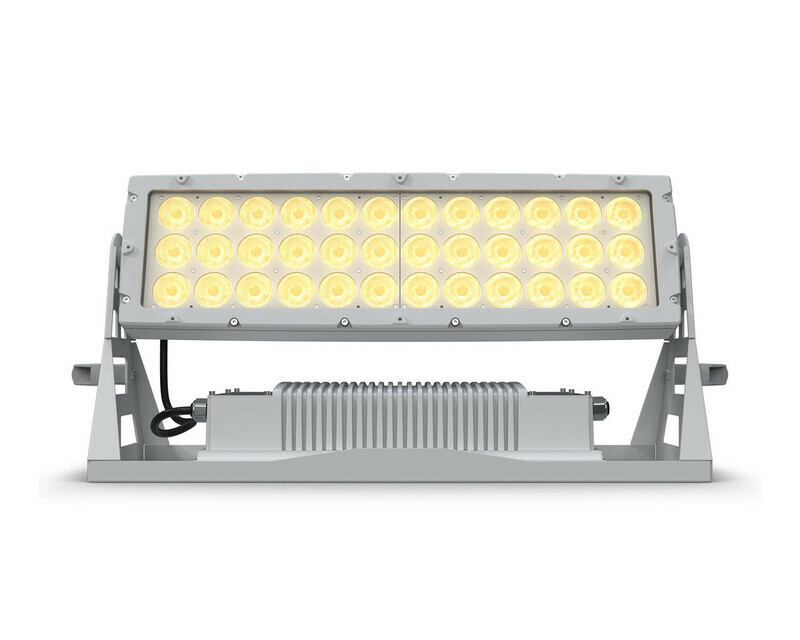

Ilumipanel LL iz Iluminarca je arhitektonski RGBL LED wash panel reflektor velikog formata i sa IP-67 zaštitom za vanjsku primjenu. 36 RGBL LED x 20W.
Savršen za osvjetljavanje zgrada u hrabrim, prekrasnim bojama, uključuje niz filtara za širenje zraka koji se lako postavljaju kako bi odgovarao primjeni bilo koje veličine.
Instalacija je brza i jednostavna, dok se elegantno kućište uklapa u okoliš.
Precizna optika eliminira raznobojne sjene, a četiri u jednom LED diode RGBL (crvena, zelena, plava, limeta) daju čistu, pravu bijelu boju i gotovo neograničenu paletu upečatljivih boja.

• 4-in-1 RGBL Color Mixing
• 50,000 hour LED Lifespan
• Beam angle: 6.4º, or change with optional Beam Filters
• Illuminance: 29,314 lux @ 5 m
• IP Rating: 67
• Integrated Yoke
• Optional Beam Spread Filters can be applied without breaking IP Seal

Downloads

 Ilumipanel LL IES Files

 Ilumipanel LL Photometrics Report

 Ilumipanel LL User Manual

 Ilumipanel LL Quick Reference Guide

 Ilumipanel LL Specifications

 2D CAD Drawing

 3D CAD Drawing

Specifications

Light Source and Optical Specifications

• Light Source: 36 LED (quad-color RGBL) 20 W, (1 A)
• Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: 6°
• Optional Optics: Medium Filter, Wide Filter, Very Wide, Asymmetrical Filter
• Beam Angle: Installed Optics: 6.4°, Medium Filter: 19.9°, Wide Filter: 32.6°, Very Wide Filter: 34.9°, Asymmetrical Filter: 37° x 12°
• Field Angle: Installed Optics: 11.7°, Medium Filter: 41.3°, Wide Filter: 65.3°, Very Wide Filter: 72.7°, Asymmetrical Filter: 68.1° x 29°
• Cutoff Angle: Installed Optics: 19.7°, Medium Filter: 61.5°, Wide Filter: 162.7°, Very Wide Filter: 168.4°, Asymmetrical Filter: 168.1° x 51.2°
• Lumens: Installed Optics: 18,228, Medium Filter: 16,623, Wide Filter: 14,211, Very Wide Filter: 13,612, Asymmetrical Filter: 16,970
• Iluminance: Installed Optics: 29,314 lux @ 5 m, Medium Filter: 3,316 lux @ 5 m, Wide Filter: 939 lux @ 5 m, Very Wide Filter: 699 lux @ 5 m, Asymmetrical Filter: 2,605 lux @ 5 m
• Efficacy At Full: 37 lm/W
• Color Temperature Presets: 1800K - 10000K

Construction & Physical Specifications

• Dimensions: 32.4 x 9.92 x 15 in (824 x 252 x 381 mm)
• Fixture Color: Off white, C5-M
• Housing Material: Cast aluminum
• Lens Cover: Impact resistant glass
• Mounting Options: Bracket, hole diameter: 13M
• Weight: 69 lb (31.3 kg)

Control Specifications

• Control Protocol: USITT/DMX-512a/RDM
• Operating Modes: Selectable personalities
• Personalities:
• Solid (1-Channel)
• Arc 1 (3-Channel)
• Arc 1+D (4-Channel)
• Arc 2 (4-Channel)
• Arc 2+D (5-Channel)
• Arc Full (8-Channel)
• Special 1 (19-Channel)
• Special 2 (9-Channel)

Data Connections:

• 6.25 ft (1.9 m) waterproof cable, bare wired to hardwired
• Fixture Setup: RDM Only
• Standalone Control: Yes
• Recommended Control Cable Specification: Gepco DLC224

Electrical System Specifications

• Electronic
• Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 463 W, 3.89 A @ 120 V, 60 Hz PF: 0.99
• 451 W, 2.22 A @ 208 V, 60 Hz PF: 0.97
• 447 W, 2.00 A @ 230 V, 50 Hz PF: 0.97
• 450 W, 1.73 A @ 277 V, 60 Hz PF: 0.95
• Power Supply: Electronic internal
• Recommended Power Cable: 14 AWG (3x 2.08 mm2)

Thermal Specifications

• BTUs At Various Voltages:
• 1,579 BTUs/hr @ 120 V, 60 Hz
• 1,538 BTUs/hr @ 208 V, 60 Hz
• 1,525 BTUs/hr @ 230 V, 50 Hz
• 1,535 BTUs/hr @ 277 V, 50 Hz
• Cooling: Convection
• Maximum Surface Temperature: 167 °F (75 °C)
• Minimum Distance To Flammable Surface: .98 ft (0.3 m)
• Minimum Distance To Illuminated Surface: 3.28 ft (1 m)
• Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
• Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)

Regulatory & Voluntary Qualification

• Environment Details: Outdoor/wet, with pressure equalizing M12 GORE valve. Please refer to the User Manual for more detailed information on installation.
• Environment Locations: Wet
• Impact Resistance Rating: IK10
• Installation Orientation: Any
• Vibration Rating: 3G
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Wind Load Rating: EPA: 1.819 ft²

Accessories

• Included: Filter Frame
• Optional: Medium filter, Wide filter, Very Wide, Asymmetrical Filter
• Required: RDM Device

Order Code

• Ilumipanel LL: ILUMIPANELLL
• Ilumipanel LL Medium Spread Filter: ILUMIPANELLLM
• Ilumipanel LL Wide Spread Filter: ILUMIPANELLLW
• Ilumipanel LL Very Wide Spread Filter: ILUMIPANELLLVW
• Ilumipanel LL Asymmetrical Spread Filter: ILUMIPANELLLASYM
