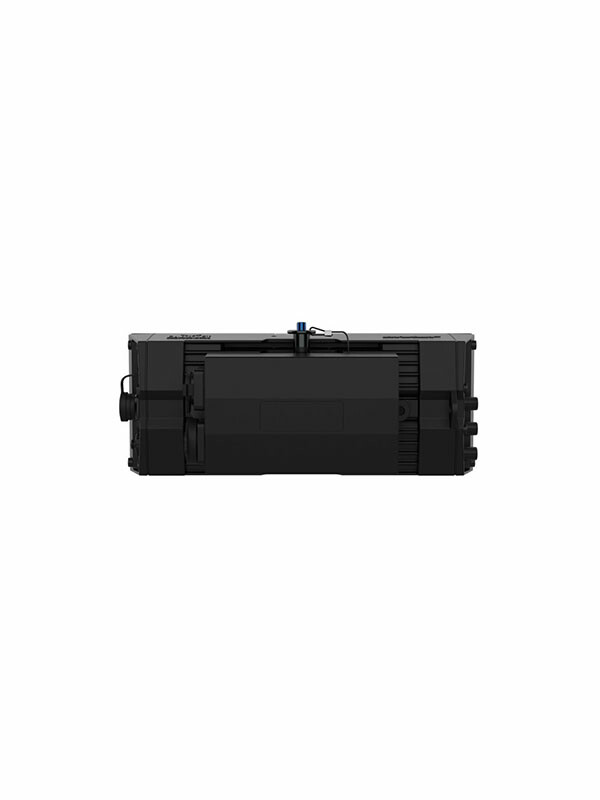

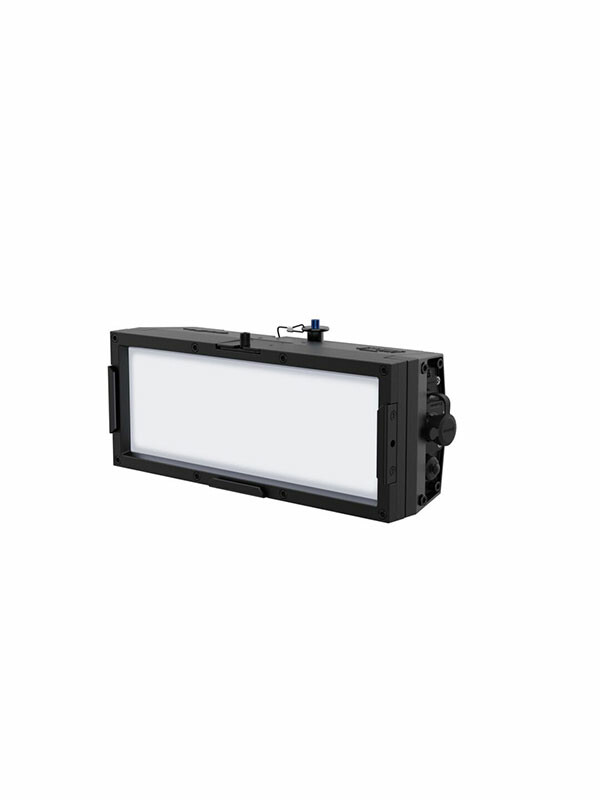

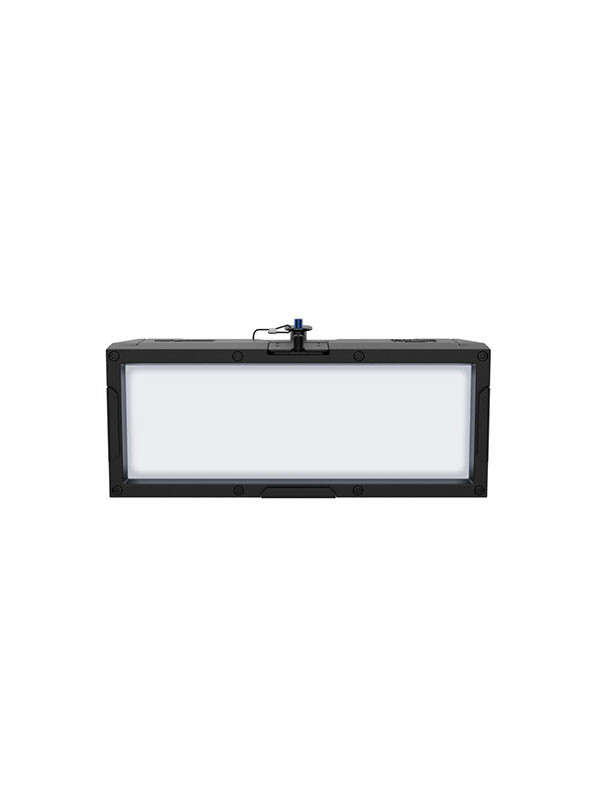

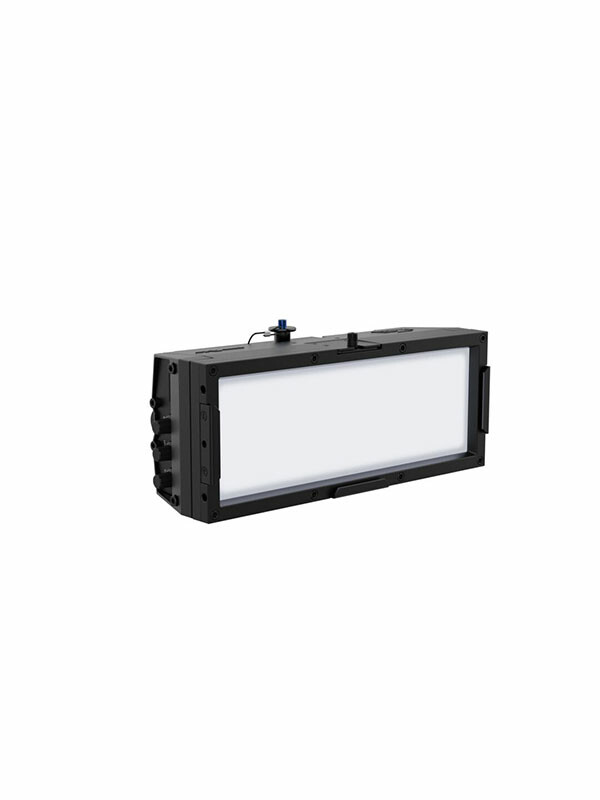

LED panel, full-spectrum, format 2x1, soft light, za TV emitiranje, filmove i posebne događaje

- IP65 zaštita za sve vremenske uvjete u zatvorenom ili vani

- Ugrađene postavke linearne temperature boja od 2800 K do 8000 K s visokim CRI i CQS

- Virtualni krug boja s bojom usklađenom s popularnim filterima boja

- +/-  podešavanje zelene boje i emulirani red-shift putem DMX-a ili izravno na uređaju

- RDM (daljinsko upravljanje uređajima) i CRMX bežična kontrola za dodatnu fleksibilnost

- Podesivi PWM (Pulse Width Modulation) za rad bez treperenja kod snimanja

- Gotovo beščujan rad za korištenje u studijskim aplikacijama

- Ultra glatke 16-bitne dimming krivulje i brzine koje nadopunjuju bilo koju shemu osvjetljenja

- Jednostavno promijenite mogućnosti montaže s Jr Pin na Omega nosač

- Drop-in utor za difuzore i filter za pojačanje (prodaju se zasebno)

- Robustan dizajn za višegodišnju grubu uporabu u najekstremnijim uvjetima

- Jednostavna ugrađena kontrola s punim pristupom svim značajkama uređaja bez potrebe za namjenskim kontrolerom

- USB priključak za ažuriranje softvera uređaja

- Ulaz za napajanje od 28 VDC preko 3-pinskog XLR-a za napajanje uređaja iz vanjske baterije

SPECIFICATIONS

OPTICAL

• Light source: 40 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy
• Light source: 40 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy
• Color temperature (range): 2800 to 8000 K
• Color temperature (at max): 6367 K
• CRI (3200 K): 94.9
• Beam Angle: 94.9°
• Field Angle: 149.4°
• Lumens: 2,573
• Illuminance: 47 lux @ 5 m
• Selectable PWM : 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 27 Hz
• Independent color mixing: Yes
• Color temperature presets: Yes
• Dimming modes: 4
• Dim Curves: 4
• Built-in automated programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions w/ PSU: 10 x 5.62 x 4.29 in (254 x 143 x 109 mm)
• Dimensions w/o PSU: 10 x 4.13 x 4.29 in (254 x 105 x 109 mm)
• Weight w/ PSU: 6.2 lb (2.9 kg)
• Weight w/o PSU: 4.2 lb (2 kg)
• Exterior Color : Black
• Housing material: Aluminum Alloy

CONNECTIONS

• Power connection: Edison plug (local) to Seetronic Powerkon IP65
• Power input: Seetronic Powerkon IP65
• Power Input: 28 VDC, 3-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

CONTROL

• Control Protocol: CRMX, RDM
• DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15
• Modes/Personalities: 9 personalities (1, 3, 4, 5, 6, 8, 10, 11, 15Ch1)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 49 W, .419 A @ 120 V, 60 Hz
• Power and Current: 52 W, .260 A @ 208 V, 60 Hz
• Power and Current: 57 W, .246 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC,
• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• onAir IP Panel Min IP
• Seetronic Powerkon IP65
• mounting hardware

OPTIONAL ACCESSORIES

• onAir Panel Min IP Barndoor
• onAir Panel Min IP 30deg Honeycomb
• onAir Panel Min IP 60deg Honeycomb
• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powerkon power linking cables
• 5-pin DMX Cables
