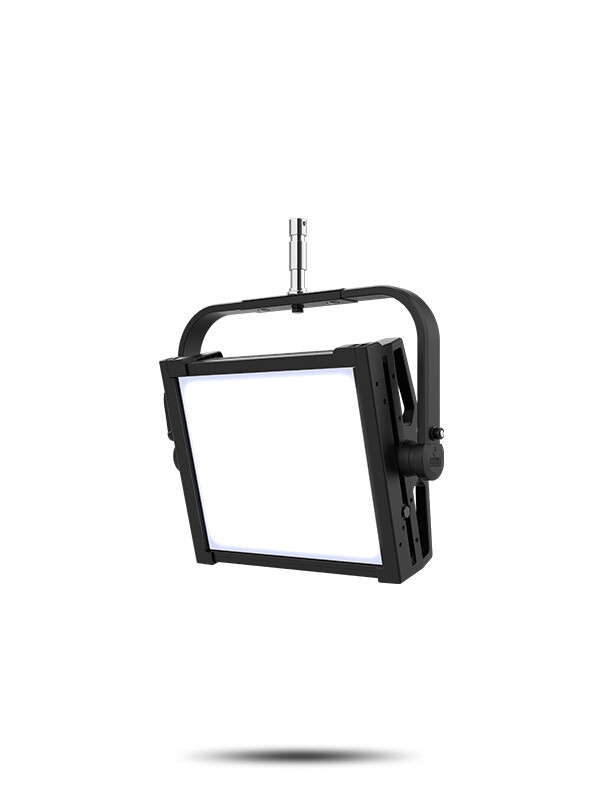

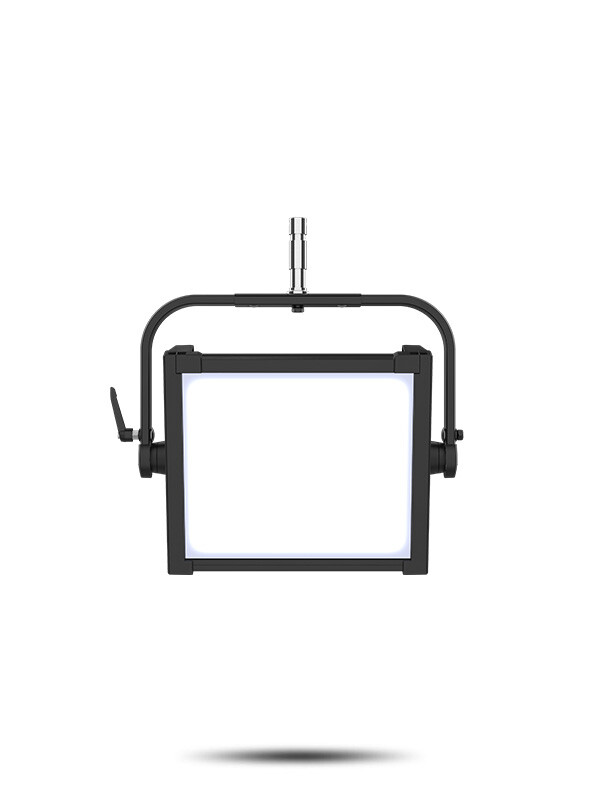

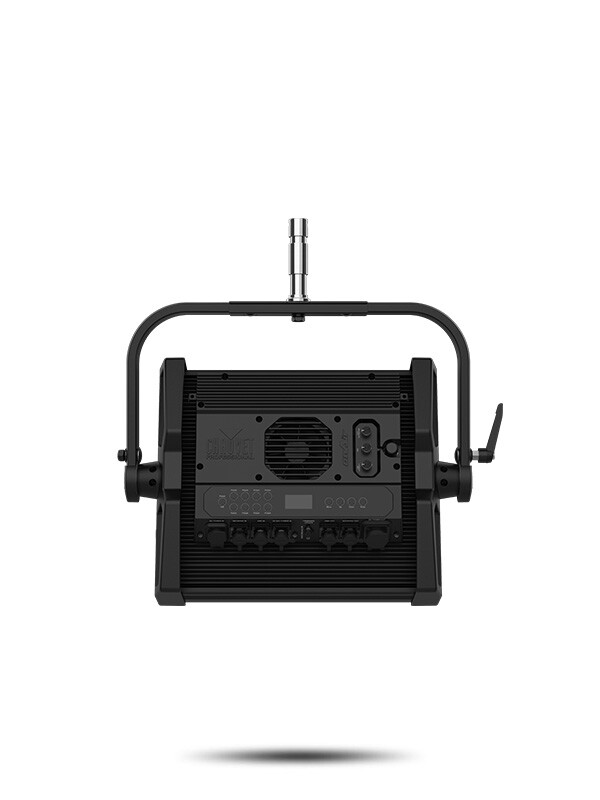

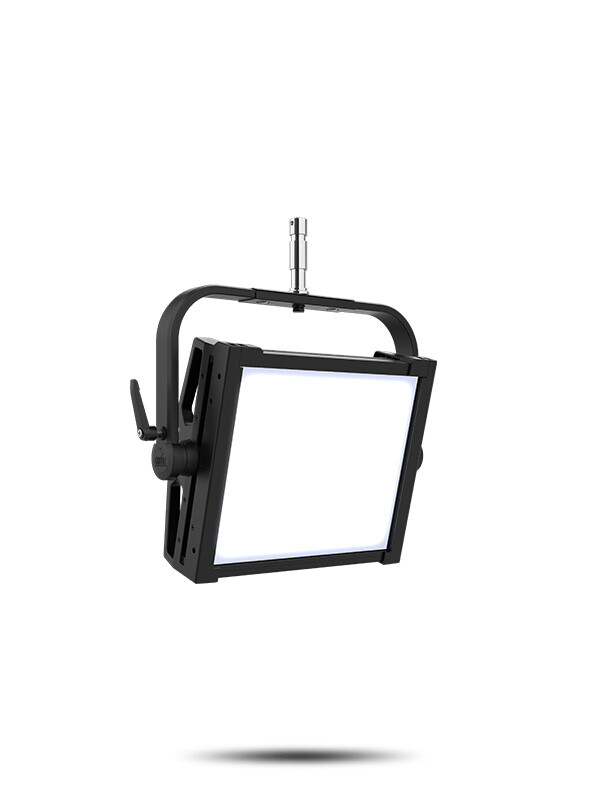

LED panel, full-spectrum, format 1x1, soft light, za TV emitiranje, filmove i posebne događaje

- IP65 zaštita za sve vremenske uvjete u zatvorenom ili vani

- Ugrađene postavke linearne temperature boja od 2800 K do 8000 K s visokim CRI i CQS

- Virtualni krug boja s bojom usklađenom s popularnim filterima boja

- +/-  podešavanje zelene boje i emulirani red-shift putem DMX-a ili izravno na uređaju

- RDM (daljinsko upravljanje uređajima) i CRMX bežična kontrola za dodatnu fleksibilnost

- Podesivi PWM (Pulse Width Modulation) za rad bez treperenja kod snimanja

- Gotovo beščujan rad za korištenje u studijskim aplikacijama

- Ultra glatke 16-bitne dimming krivulje i brzine koje nadopunjuju bilo koju shemu osvjetljenja

- Jednostavno promijenite mogućnosti montaže s Jr Pin na Omega nosač

- Drop-in utor za difuzore i filter za pojačanje (prodaju se zasebno)

- Robustan dizajn za višegodišnju grubu uporabu u najekstremnijim uvjetima

- Jednostavna ugrađena kontrola s punim pristupom svim značajkama uređaja bez potrebe za namjenskim kontrolerom

- USB priključak za ažuriranje softvera uređaja

- Ulaz za napajanje od 28 VDC preko 3-pinskog XLR-a za napajanje uređaja iz vanjske baterije

SPECIFICATIONS

OPTICAL

• Light Source: 224 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.
• Light Source: 224 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 7566 K
• CRI (3200 K): 91.8
• Beam Angle: 99.3°
• Field Angle: 154°
• Lumens: 10,092
• Illuminance: 165 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 28 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 22 x 5.74 x 21.81 in (559 x 146 x 554 mm)
• Weight: 28 lb (12.7 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Power Input: 28 VDC, 3-pin IP65 XLR
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

CONTROL

• Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
• DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16
• Art-Net Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16
• Modes/Personalities: 12 personalities (1, 3, 4, 5, 6, 8Ch1, 8Ch2, 10, 11, 15Ch1, 15Ch2, 16)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V, 17 units @ 240 V
• Power and Current: 184 W, 1.524 A @ 120 V, 60 Hz
• Power and Current: 187 W, .891 A @ 208 V, 60 Hz
• Power and Current: 180 W, .824 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC,
• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• onAir Panel 1 IP
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

• onAir Panel 1 IP Barndoor
• onAir Panel 1 IP 60deg Honeycomb
• onAir Panel 1 IP Diffusion Filter Pack
• onAir Panel 1 IP Intensifier Filter
• onAir Panel 1 IP Pole Op Yoke
• Professional Clamps: CTC-50HC, CTC-50HCN
• Seetronic Powerkon power linking cables
• 5-pin DMX Cables
• Ethernet Cables
